SSO - ADFS

In this article, we will look at how to set up AD FS so that it can be used as an external identity provider for Subscription Manager, allowing single sign-on capability between AD FS and Subscription Manager.

Follow the steps below:

IIS

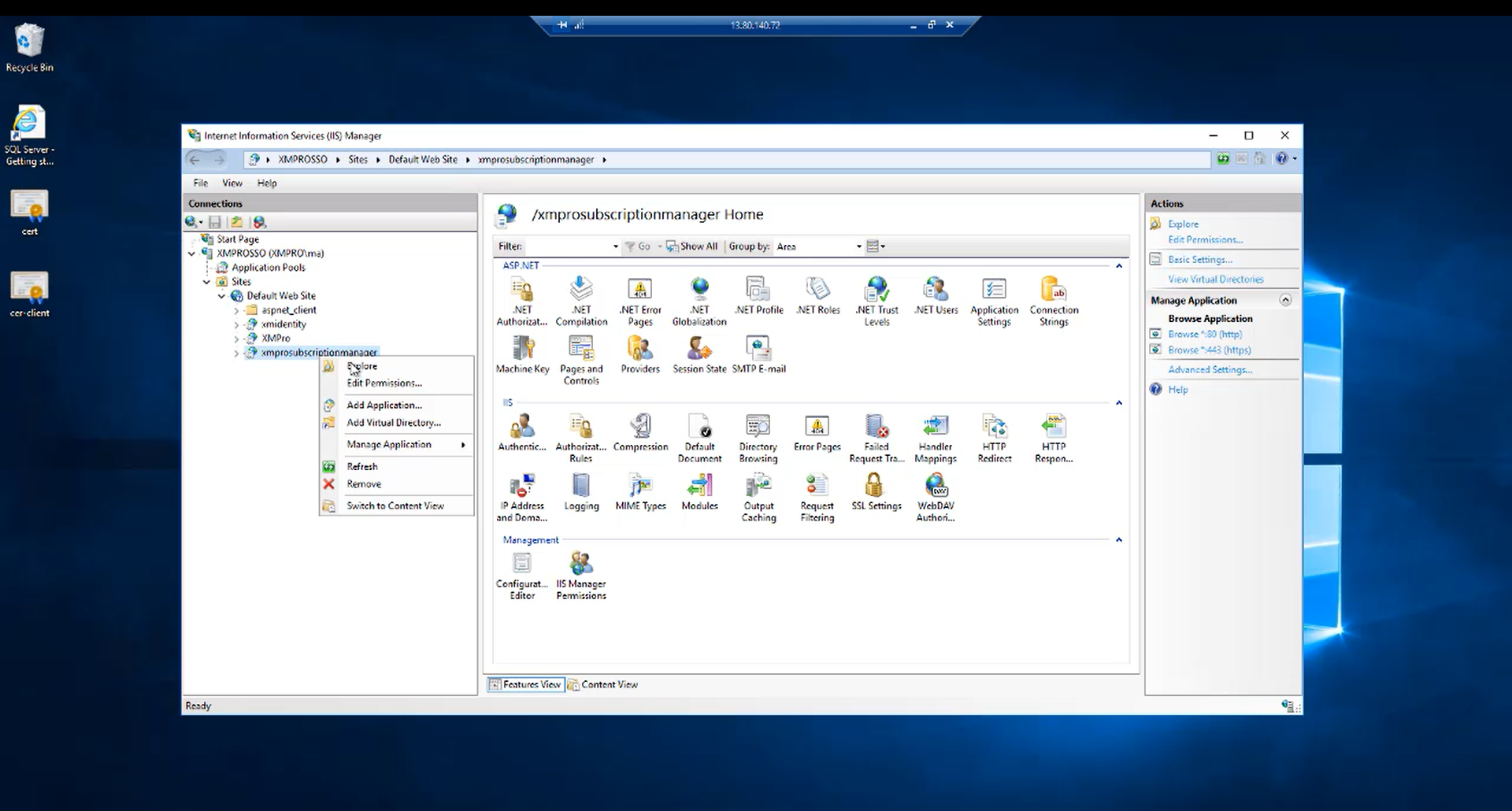

  1. Navigate to the location in IIS where Subscription Manager was installed.
Note

You can right-click on the application name in IIS and choose "Explore".

Open Subscription Manager application

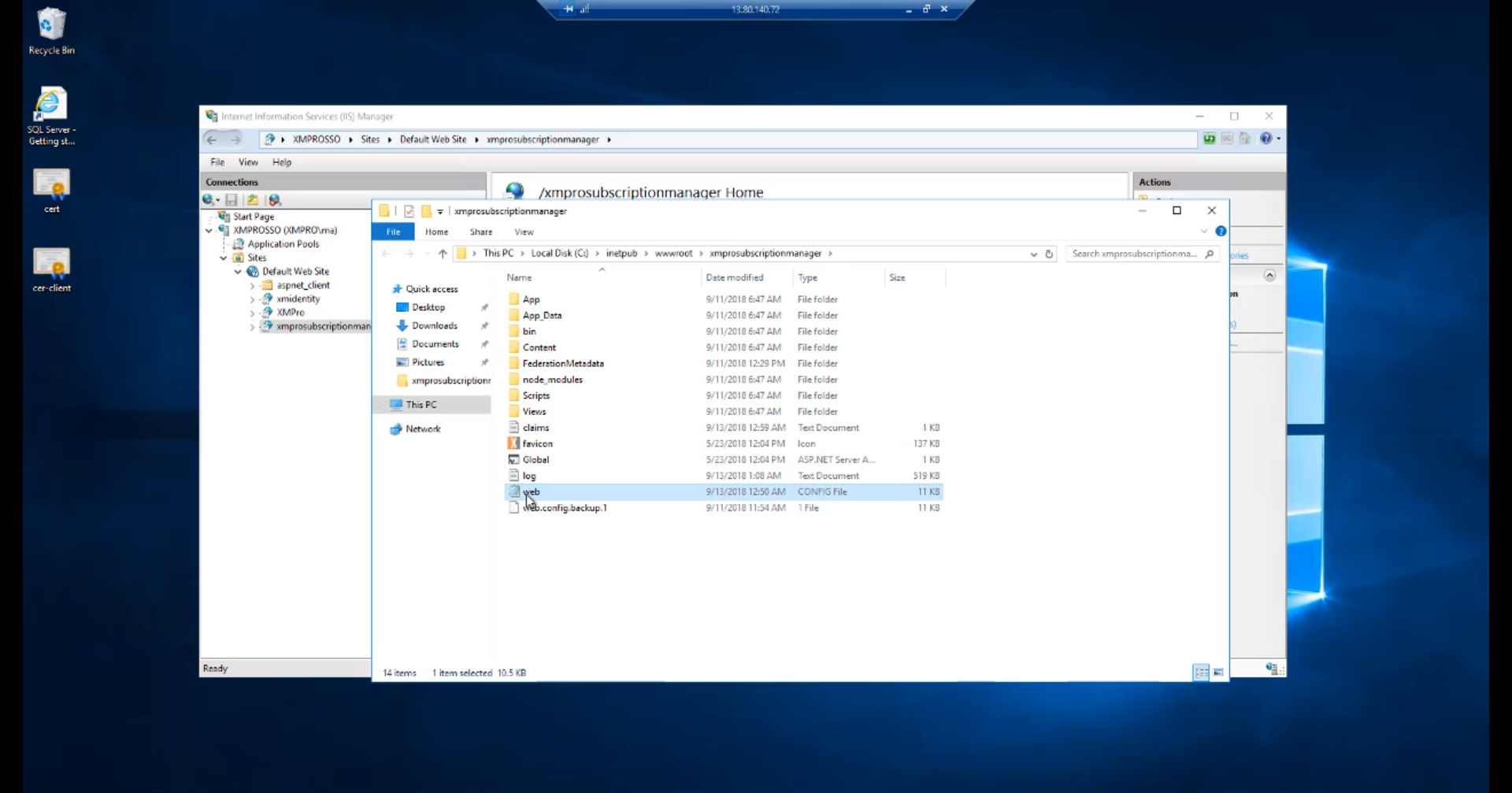

  1. Open the web.config file.

Open web.config file

  1. Scroll down to the "xmpro" section.
Note

It might be encrypted, which will require you to decrypt it first. For instructions, please refer to the How to encrypt and decrypt a web.config file Knowledge Base article.

  1. Under the "identityProviders" element, add a new element called "adfs".

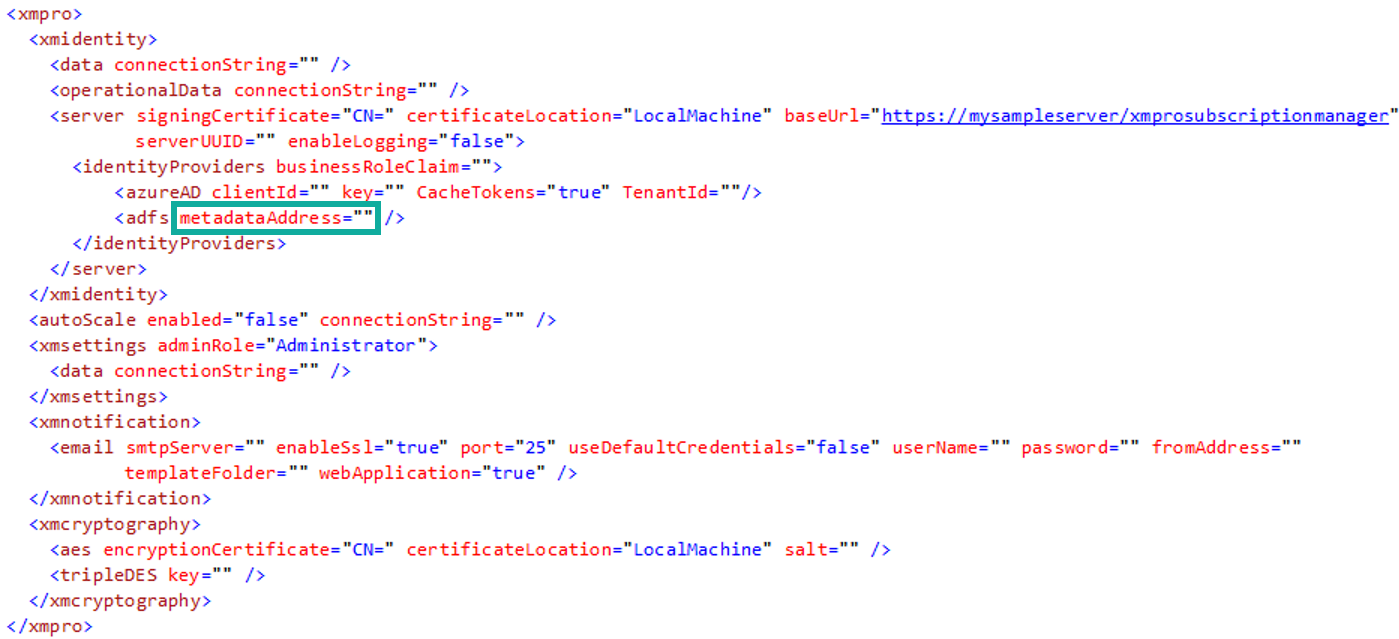

  2. Specify the metadata address of your AD FS, as per the image below:

ADFS web config metadata address

Note

Set the correct URL for the metadataAddress value. An example of how the URL might look is "_https://adfs.domain.com/federationmetadata/2007-06/federationmetadata.xml_".

Verify your URL by browsing to it in a browser.

  1. Copy the "baseUrl" value in the web.config - you will need it later in this guide.

Azure AD web config baseUrl

Warning

You will use this value to create a relying party trust between the Subscription Manager application and AD FS

Server Manager

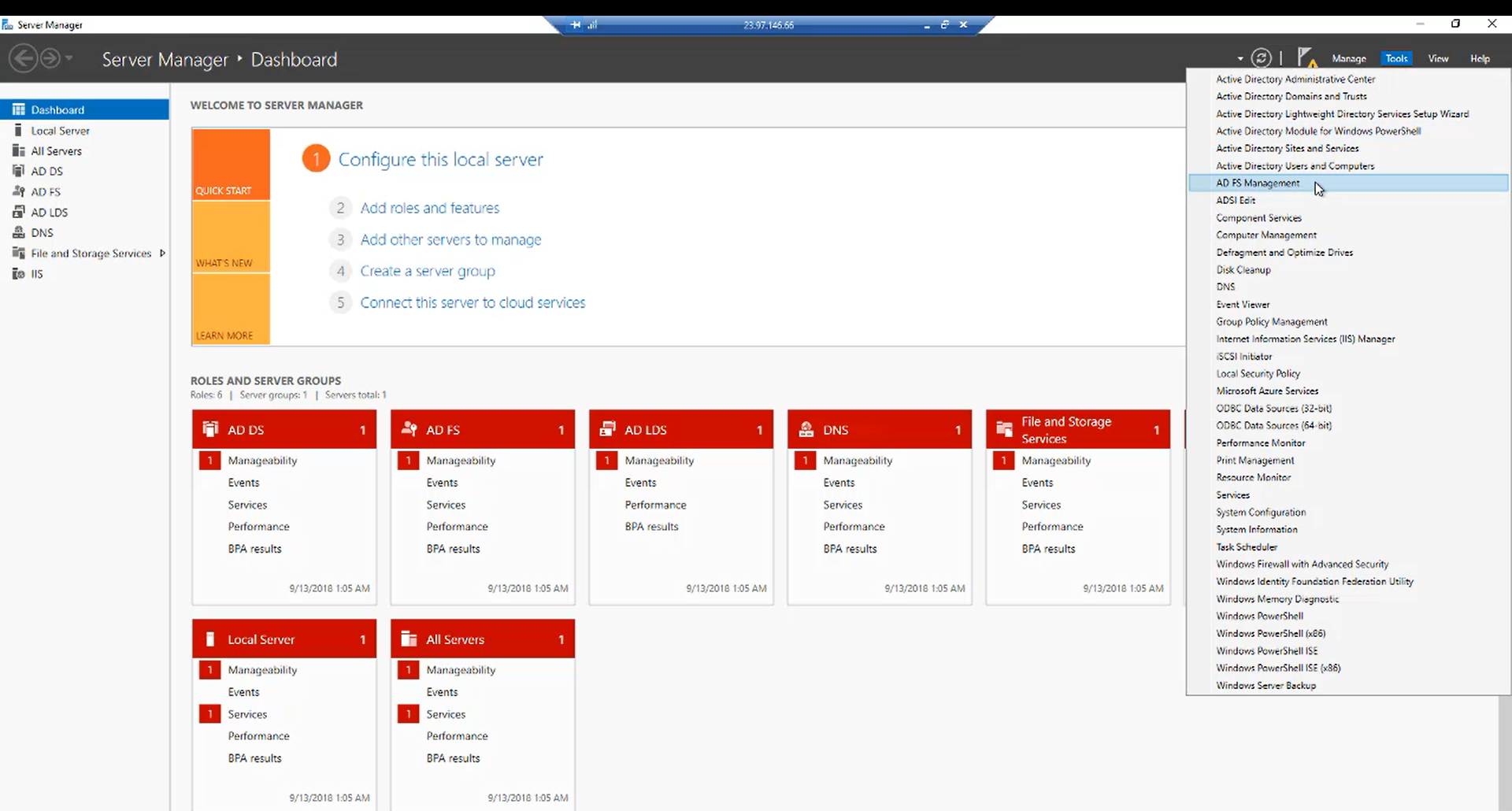

  1. Log on to your AD FS server and go to Tools –> AD FS Management

Open AD FS Management

Relying Party Trust

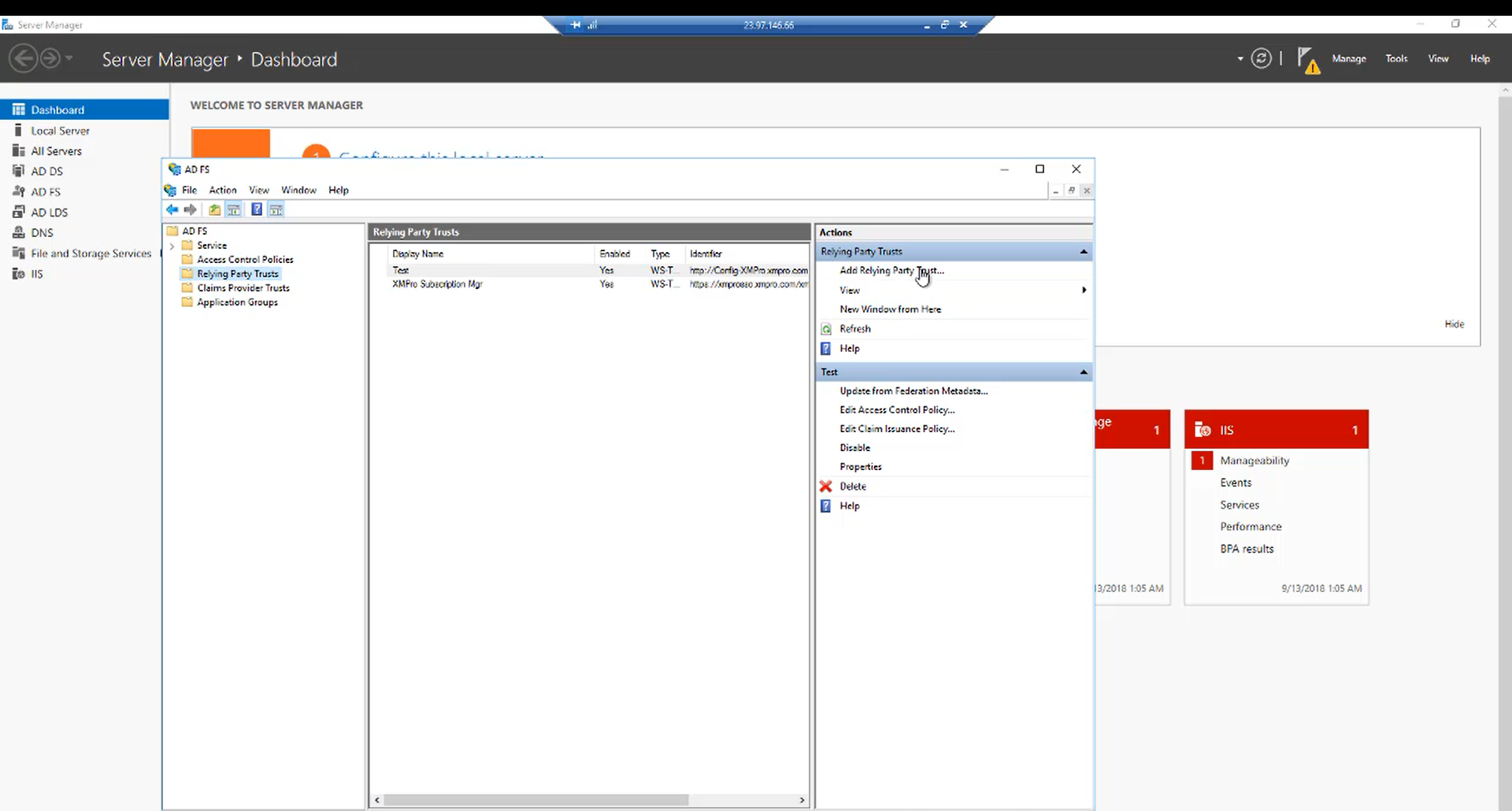

  1. Click Add Relying Party Trust

Click on Add Relying Party Trust

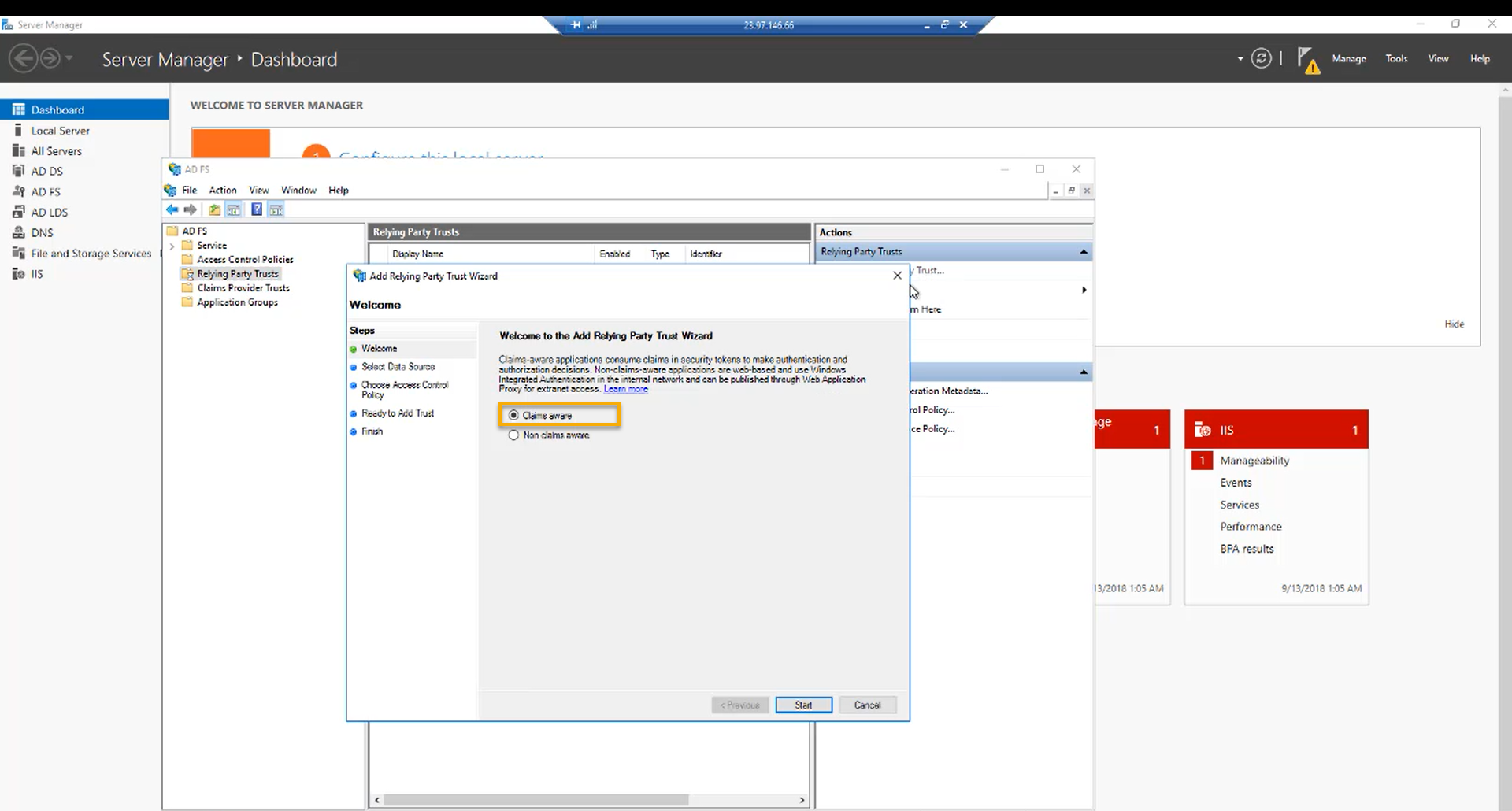

  1. Select Claims aware and click Start

Select Claims aware

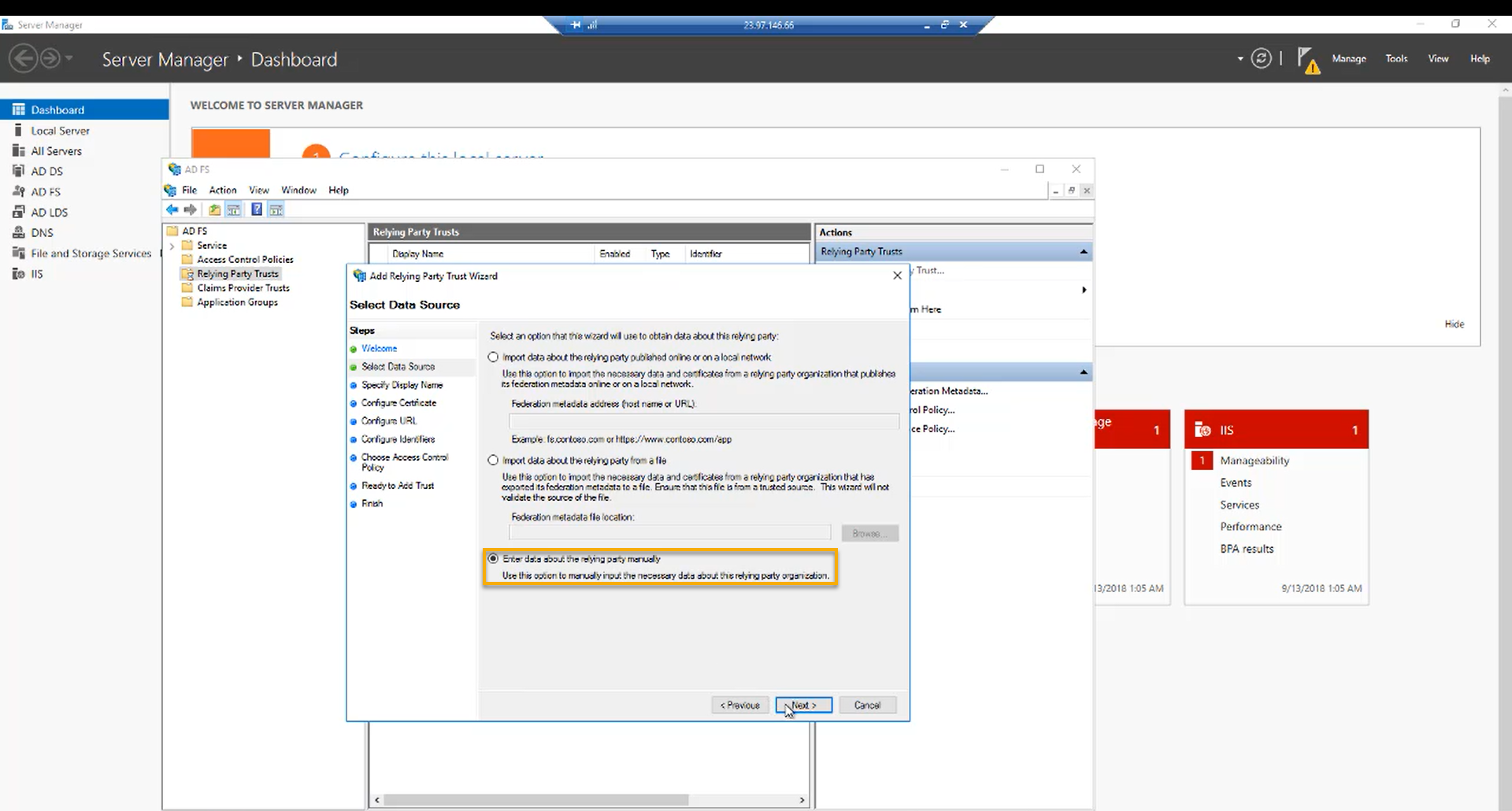

  1. Select Enter data about the relying party manually and click Next

Add data manually

  1. Choose a display name and click Next and Next again

Choose a display name

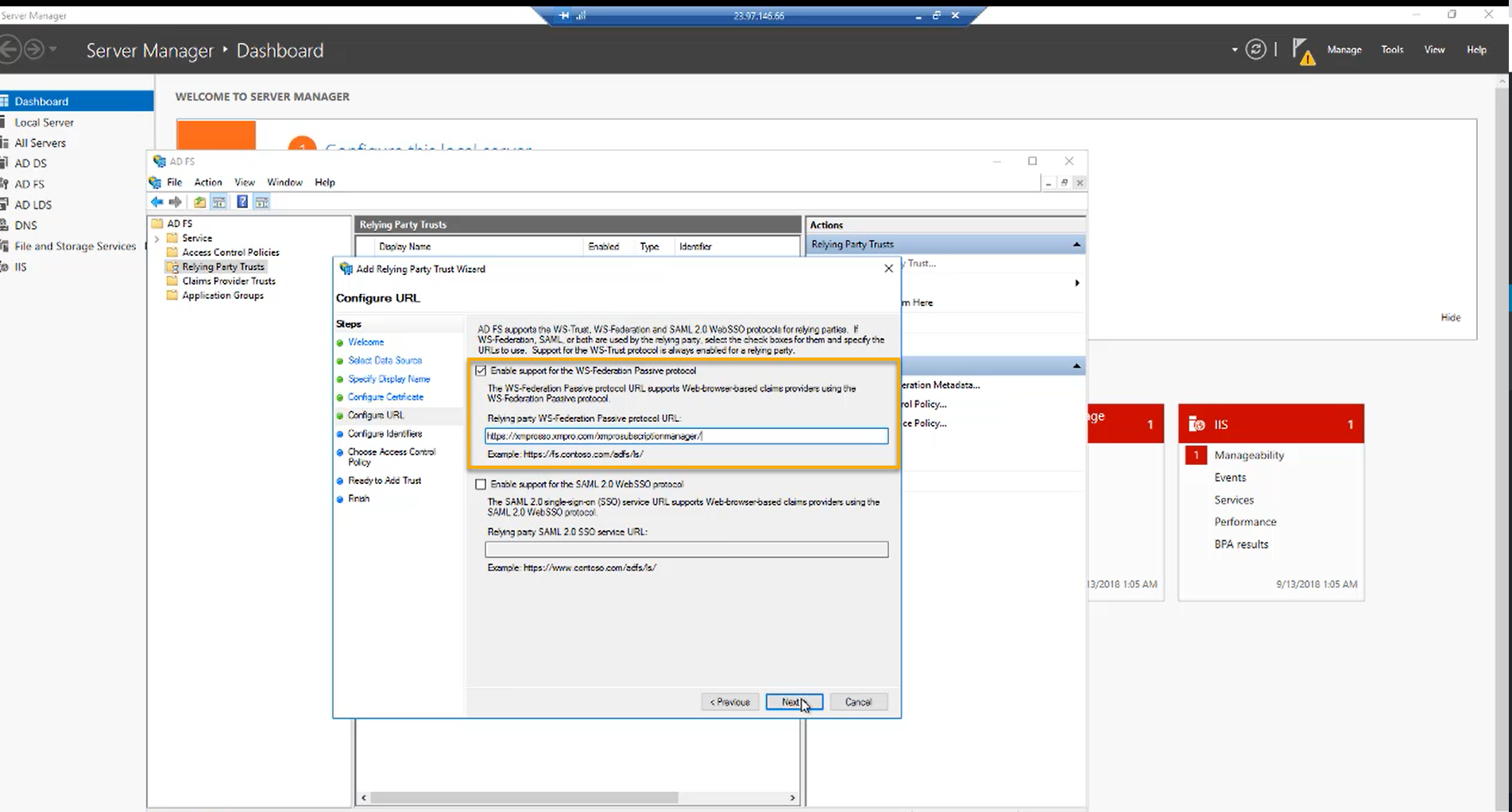

  1. Select Enable support for the WS-Federation Passive protocol, add the URL and click Next
Note

This is the base URL you copied from the web.config file.

WS-Federation protocol

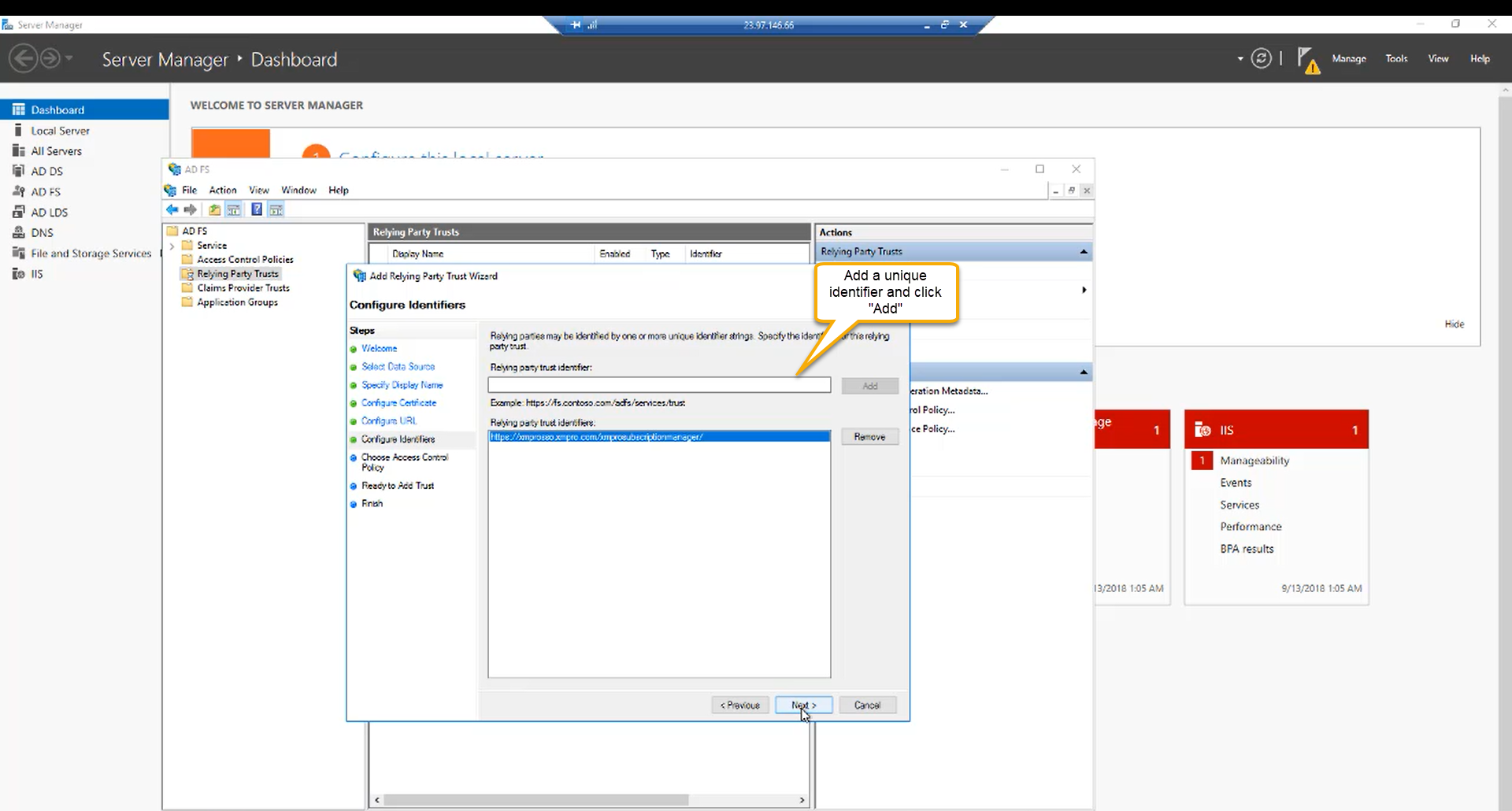

  1. Add the identifier for the application. Use the URL for Subscription Manager

  2. Add the URL and click Next

Unique identifier

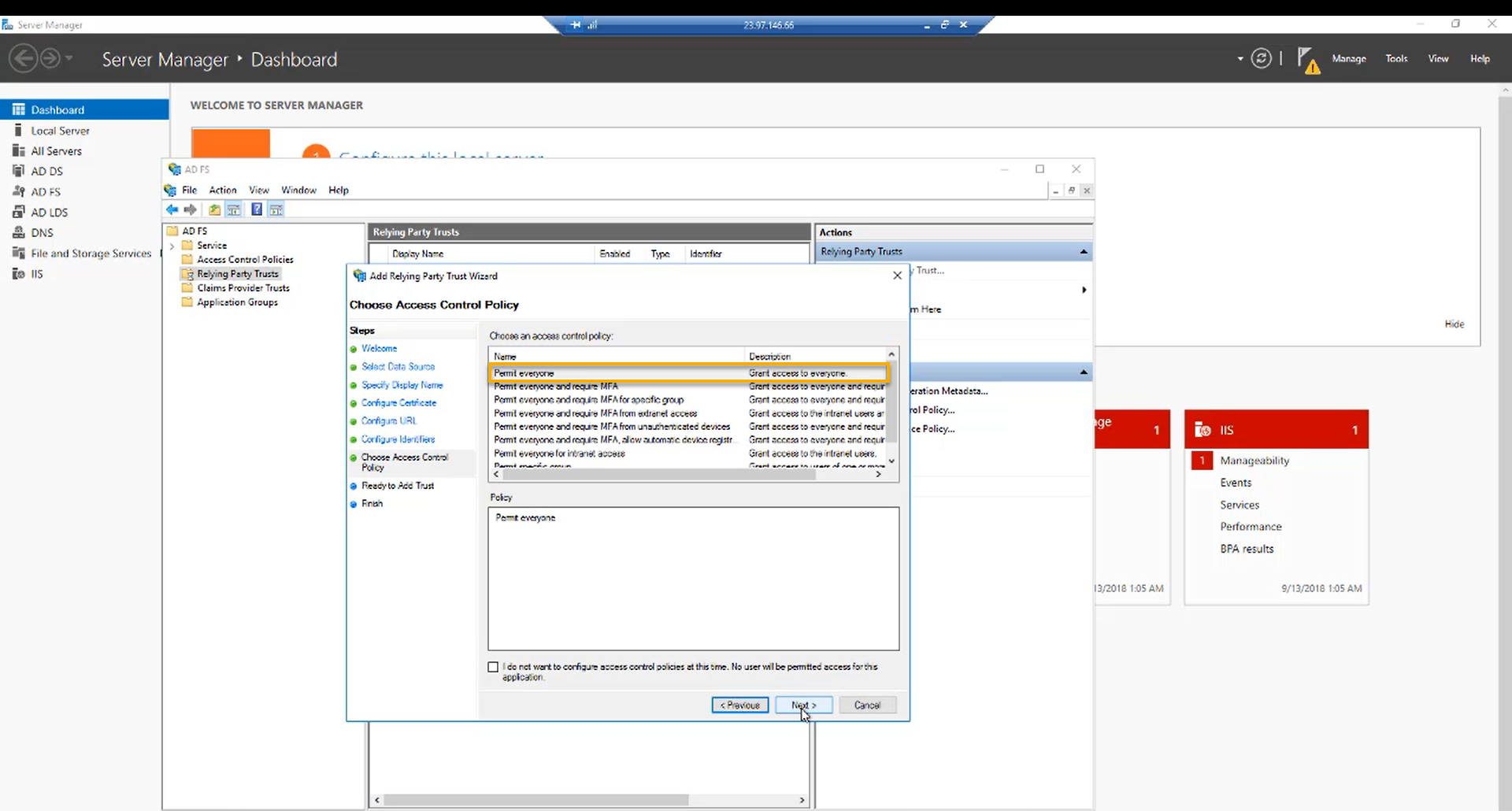

  1. Choose an access control policy and click Next. Continue to the last screen
Note

For this article, we are going to choose Permit everyone

Access control policy

Claims Issuance Policy

  1. Select Configure claims issuance policy for this application and finish

Last screen

  1. In the AD FS Management window, click Edit Claim Issuance Policy… and click Add Rule

Edit claim issuance policy

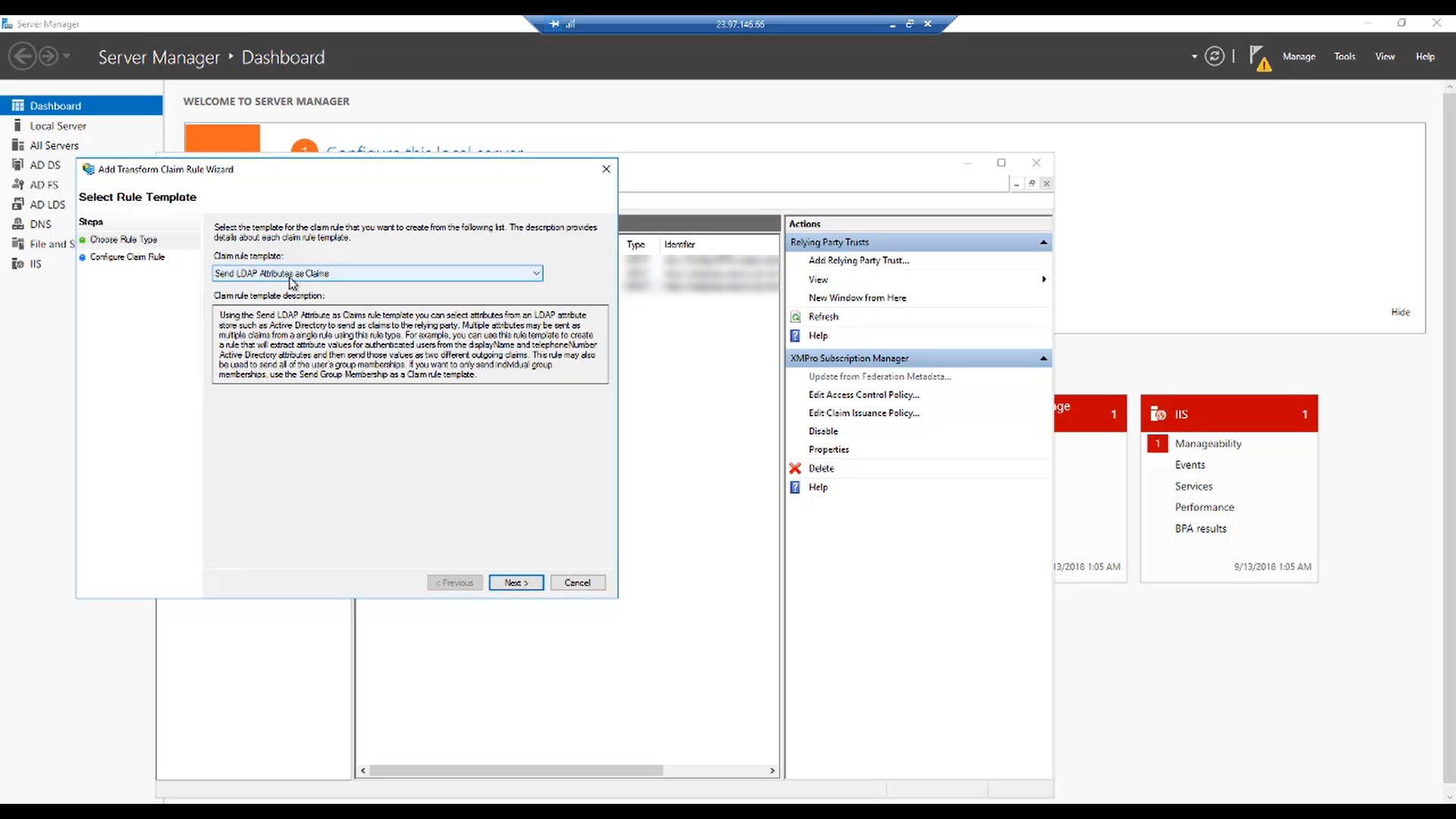

  1. In the Claim rule template drop-down, select Send LDAP Attributes as Claims and click Next

LDAP attributes as claims

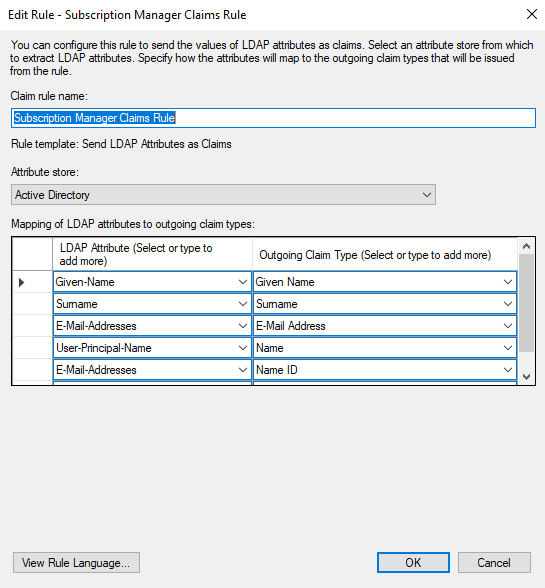

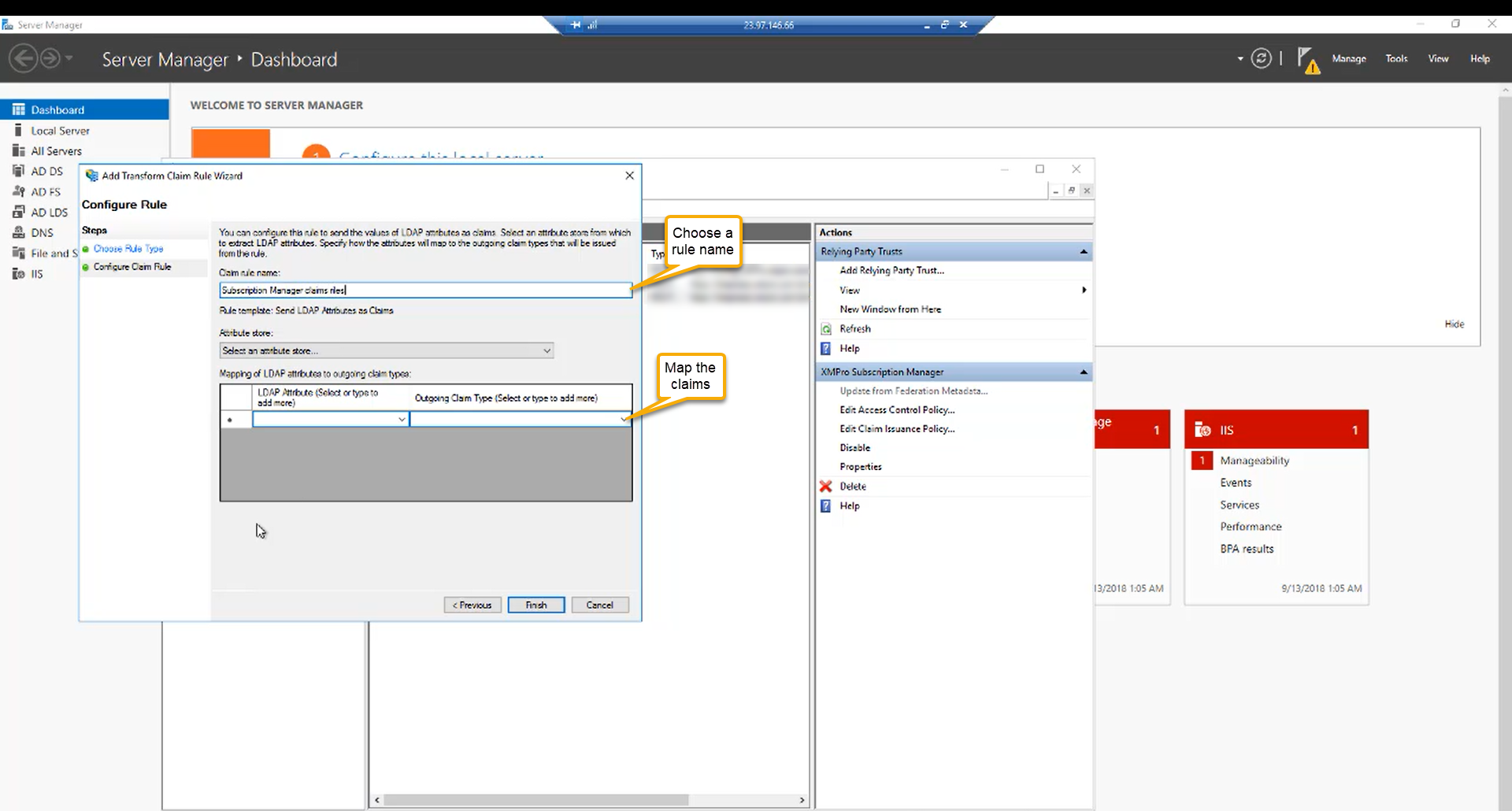

  1. Choose a name for the rule and map the claims

Edit Rule

Choose a name for the rule

Login to Subscription Manager using AD FS

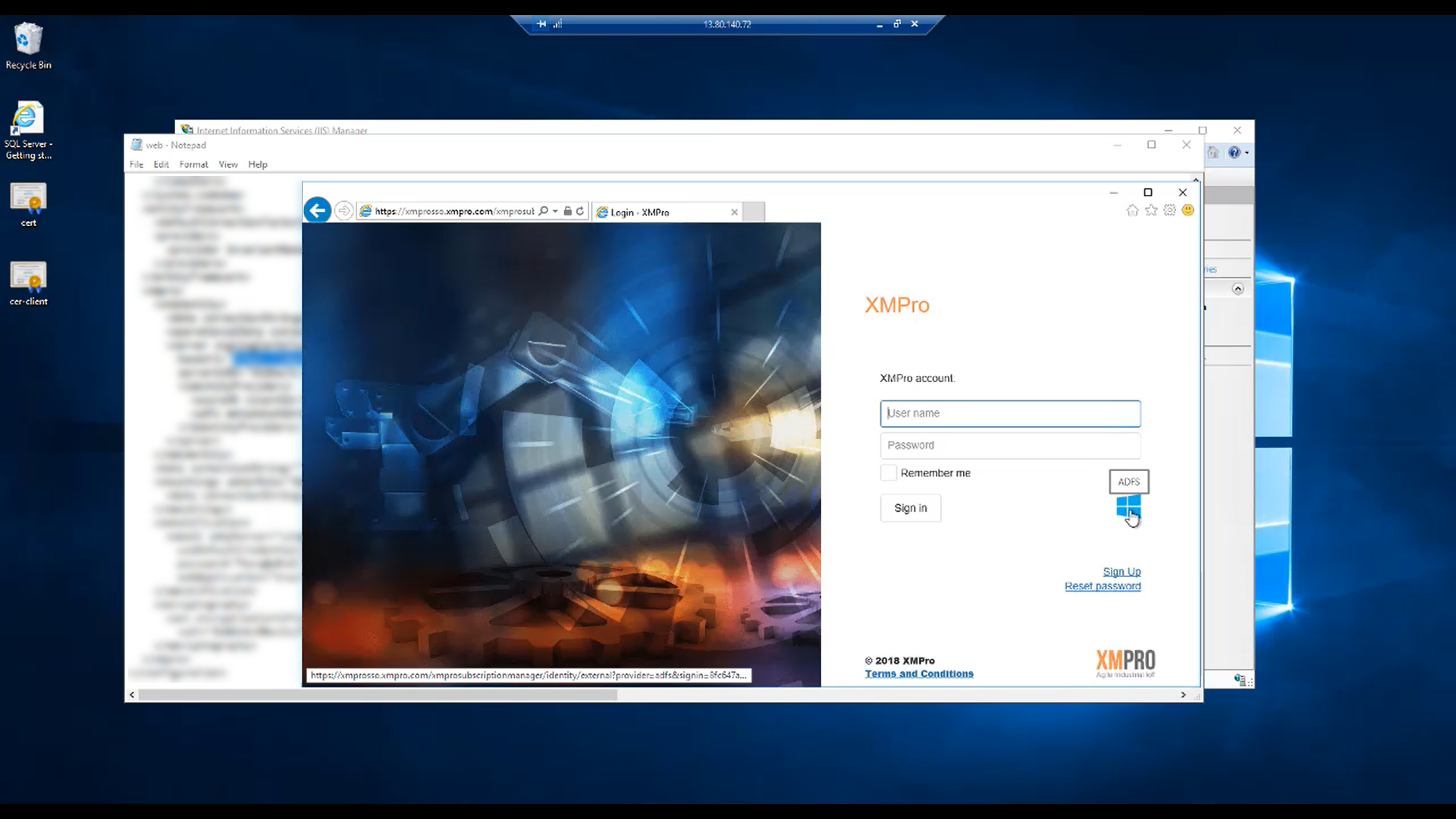

Now you should be ready. If you navigate to the Subscription Manager application, you will see the AD FS login option. Log in with your AD FS credentials.

Note

You will be asked to link your account when you sign in for the first time. If so, fill in your information and click Link Account

Add ADFS credentials

ADFS login button
