Azure

This document will guide you through how to set up the Azure infrastructure and deploy the XMPro Platform.

Architecture

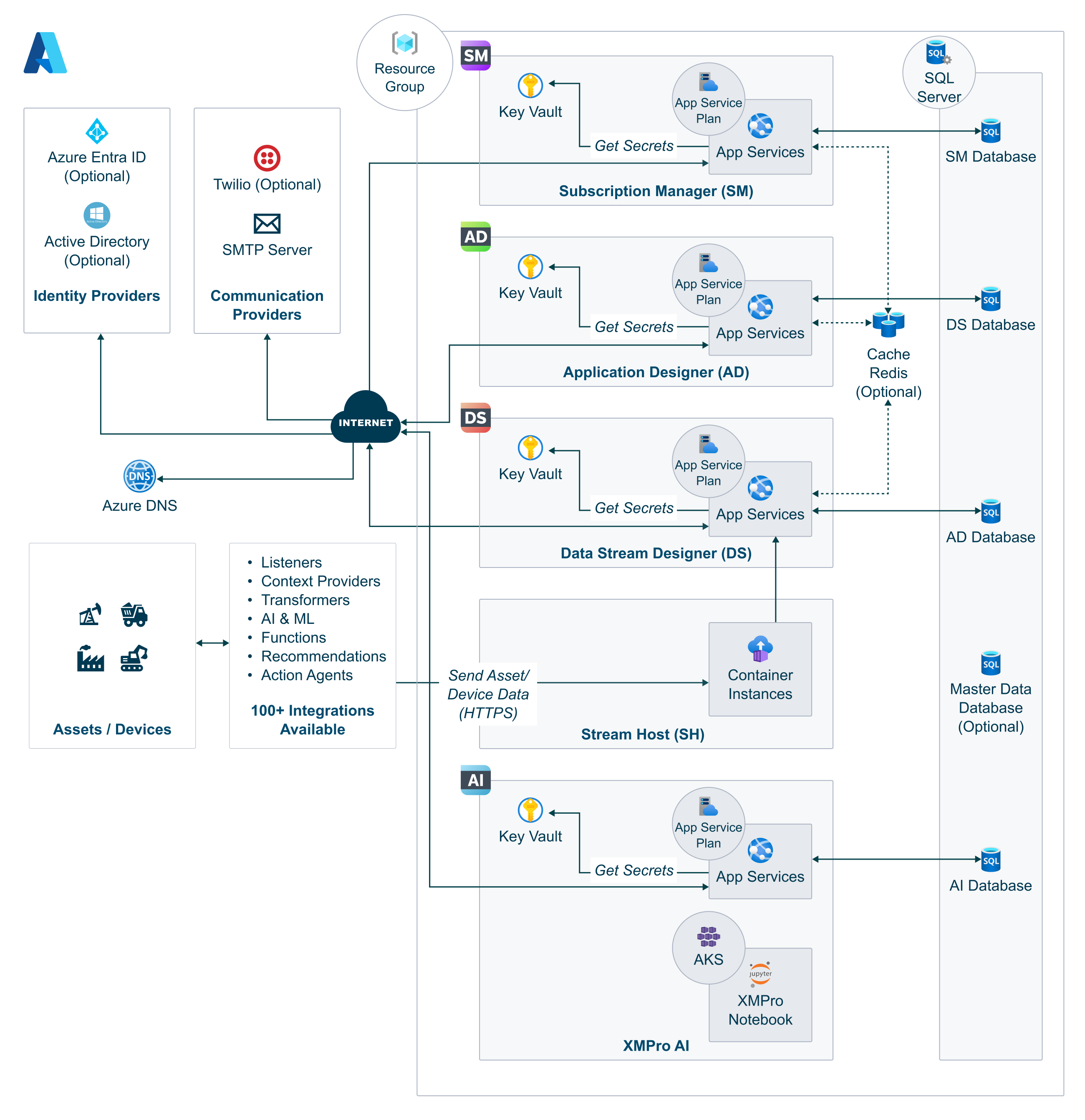

The following deployment diagram shows an example architecture and the necessary resources for the XMPro platform in Microsoft Azure.

Fig 1: Example XMPro architecture in Azure

Set up of Cloud Stream Host, Master Data, Azure Cache, or Twilio is optional and is dependent on client requirements. As a result, these resources will be excluded from this deployment.

Prerequisites

In order to proceed with the deployment, you are required to complete the steps in the 1. Preparation guide:

  1. Select Azure resources that meet the hardware requirements and software requirements.
  2. Follow the certificate and communication steps for an SMTP Account (Recommended).

As well as having:

  • Azure portal administrative access
  • Access to Subscription and Resource group

Install

This section provides information about installing the XMPro platform from scratch in Azure.

  1. Log on to the Azure Portal https://portal.azure.com/ (with Company Administrator access)

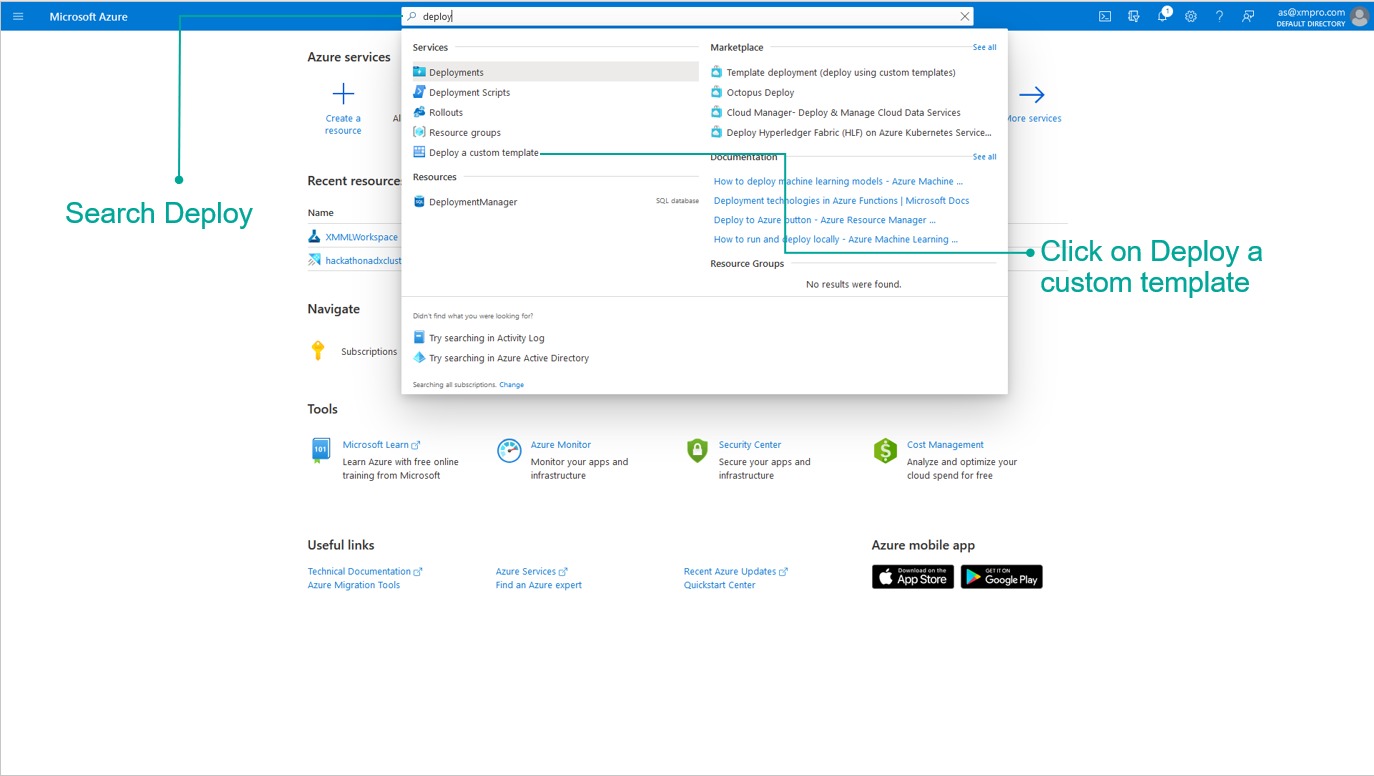

  2. In the search bar type “Deploy” and select “Deploy a custom template”

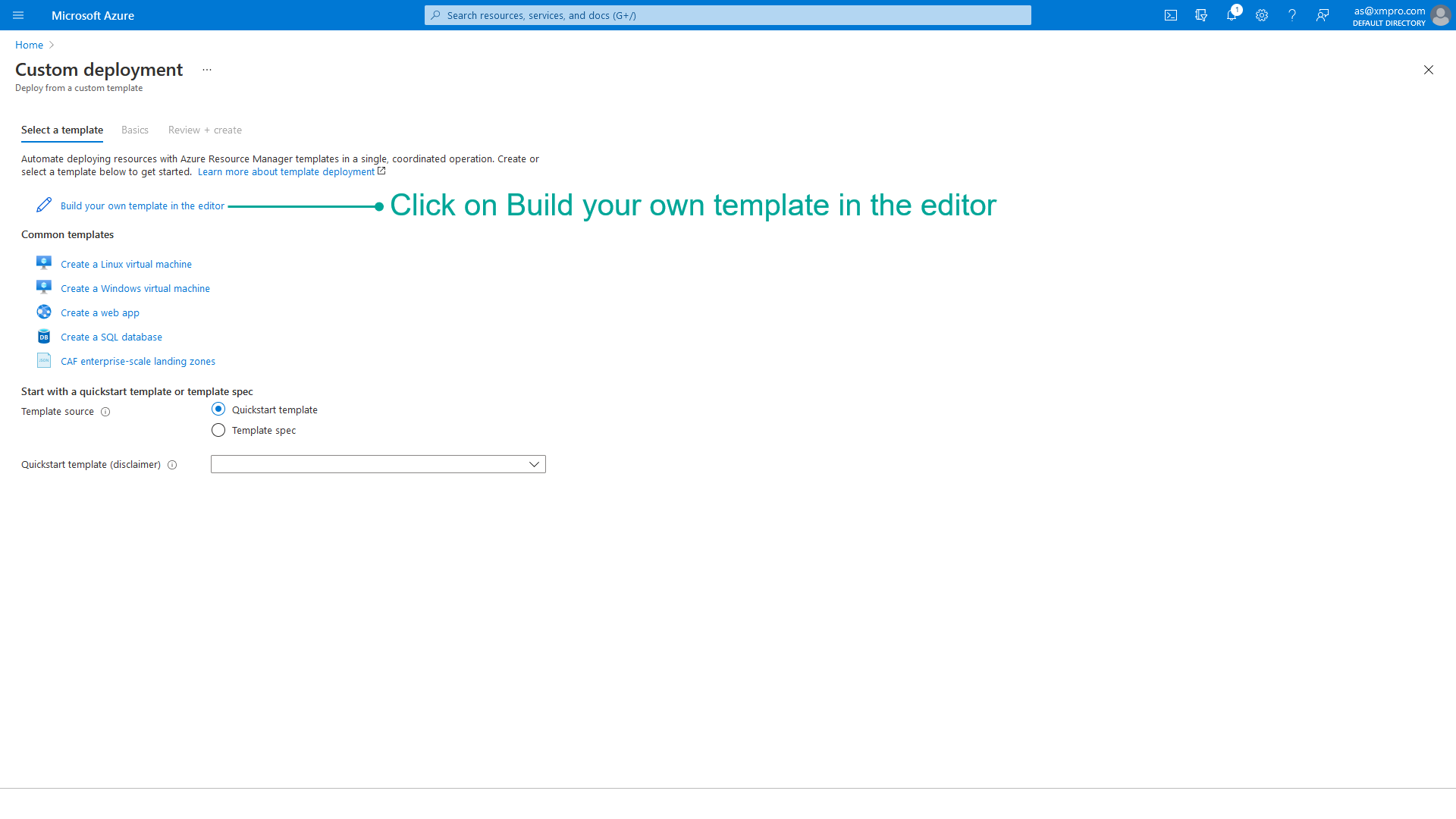

3. Click "Build your own template in the editor"

  1. Download the latest mainTemplate_[Version].json file from your XMPro account manager or support team.

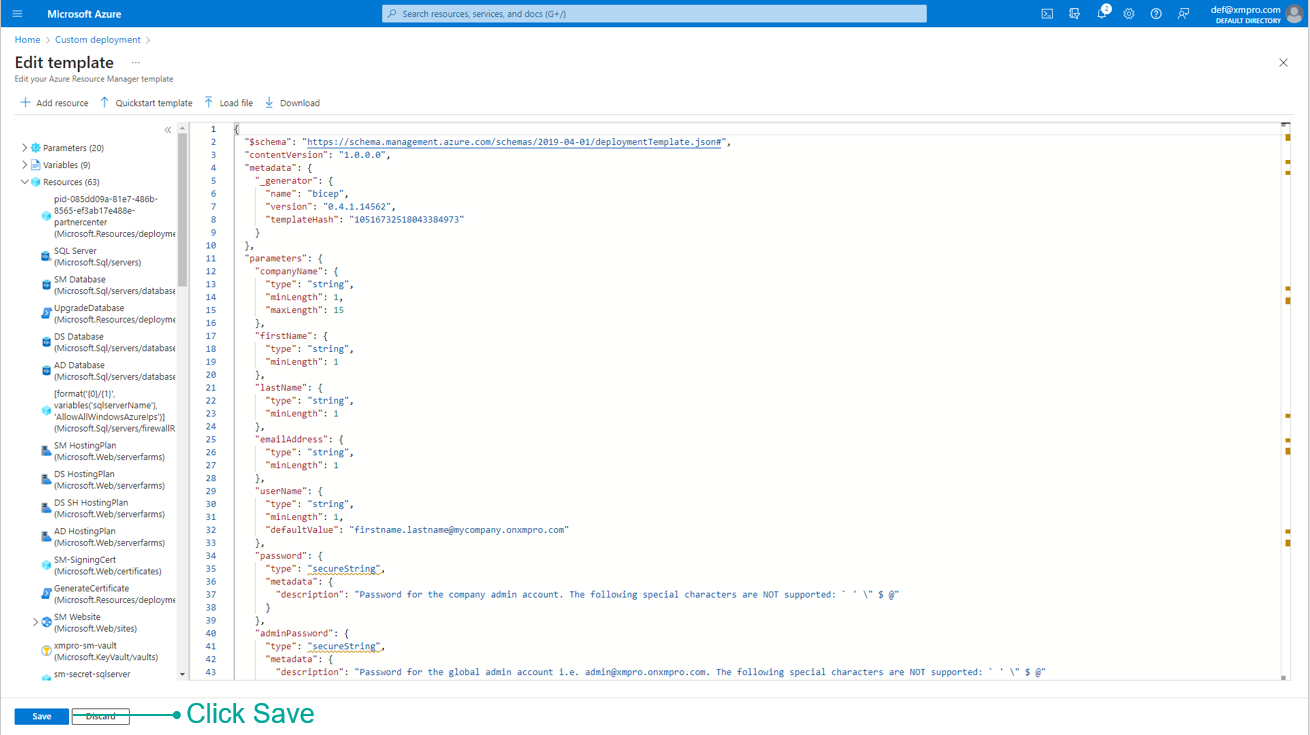

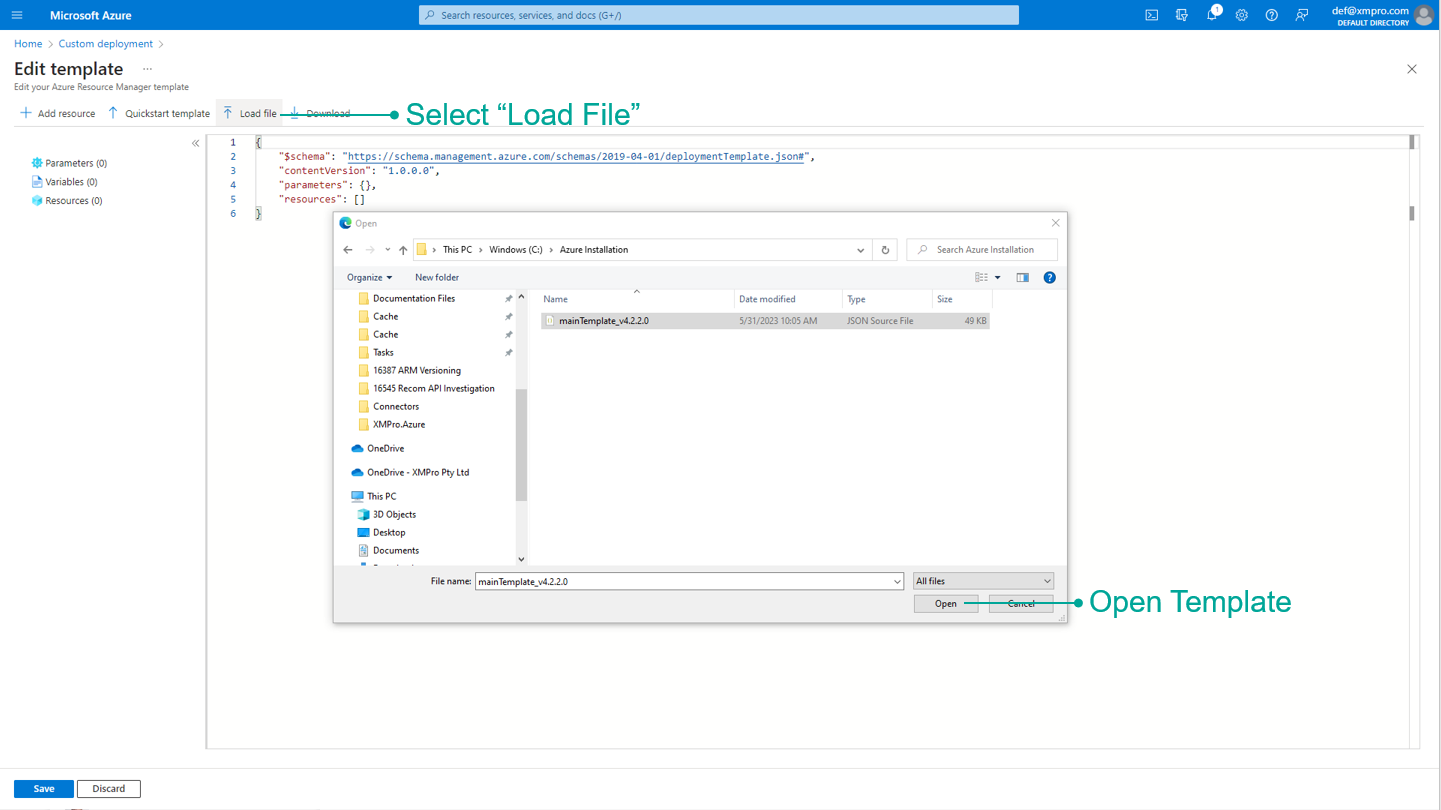

5. Select "Load File" and then Open the downloaded "mainTemplate_[Version].json"

6. Once loaded, click Save - do not change the template.

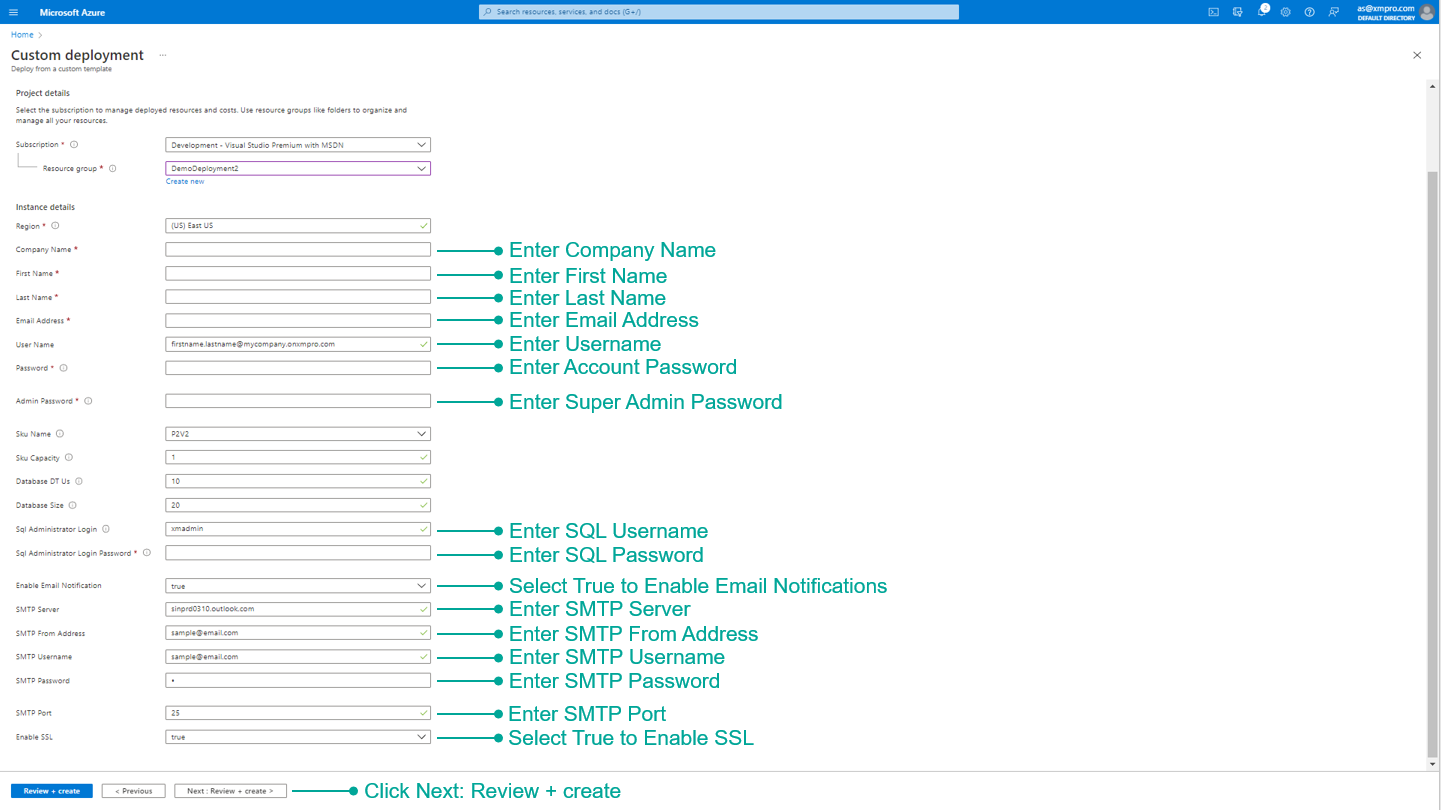

7. Complete the form.

Warning
  • Enter the username in the correct format i.e. firstname.lastname@companyname.onxmpro.com
  • The following special characters are not supported in the passwords: ` ' \ $ @
  • Take note of the passwords used as this will not be displayed again and they are required later.

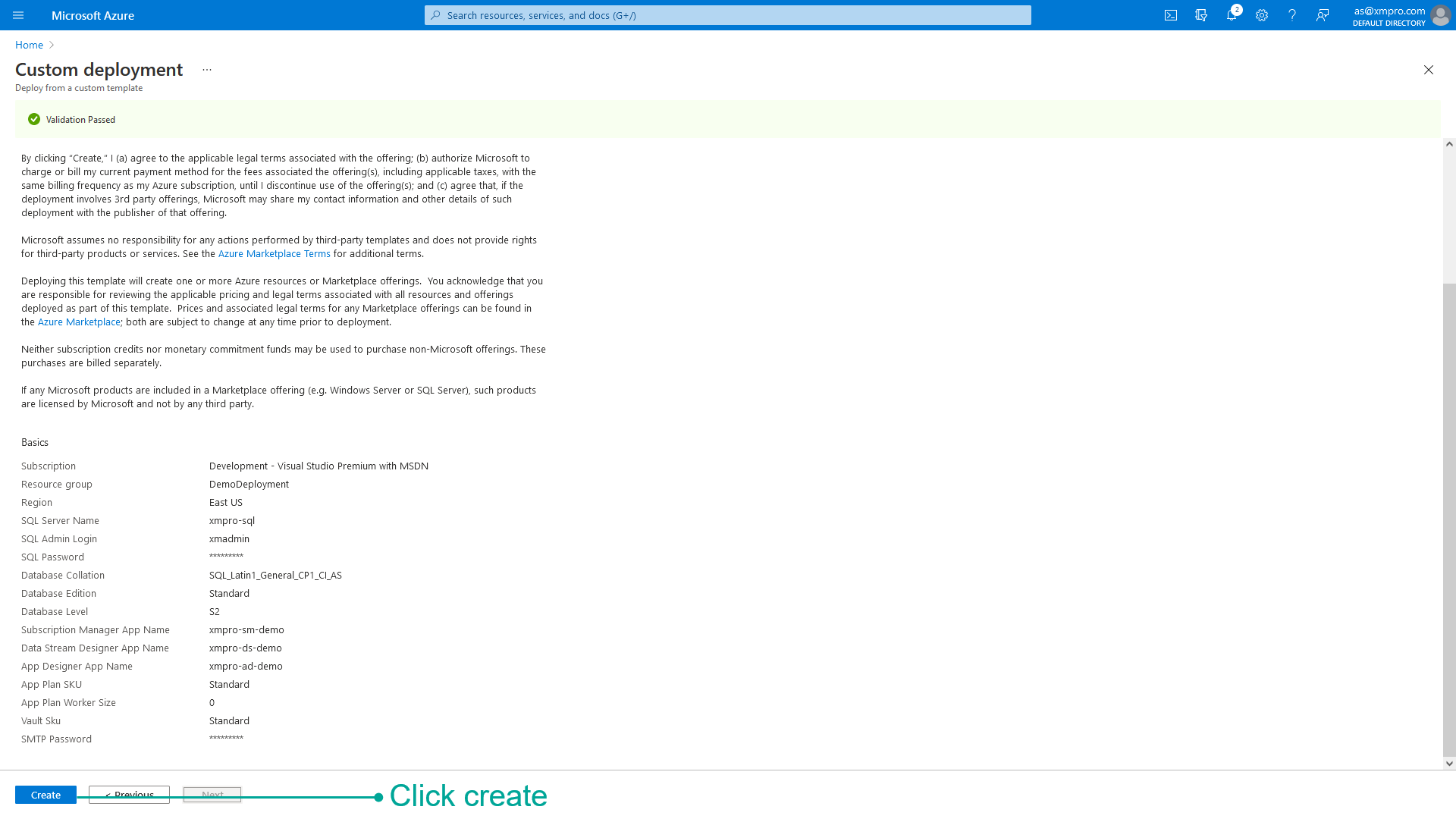

8. Verify the information is correct and click Create.

After successful deployment, the following items have been installed:

  • Subscription Manager
  • Data Stream Designer
  • App Designer
  • Stream Host

Proceed to Restart the App Services after they are all deployed.

Restarting App Services

This step explains how to restart your app services in the Azure Portal.

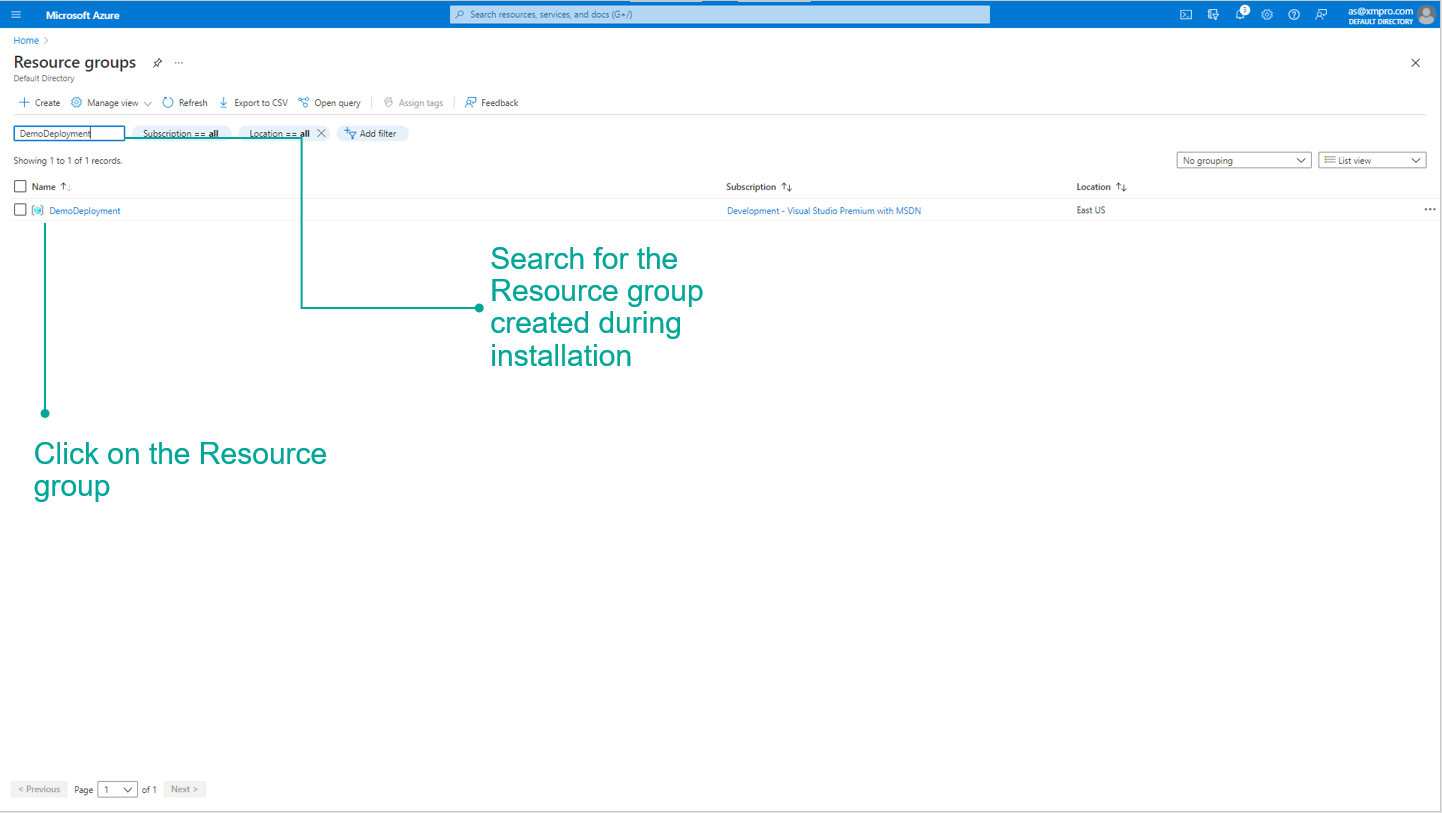

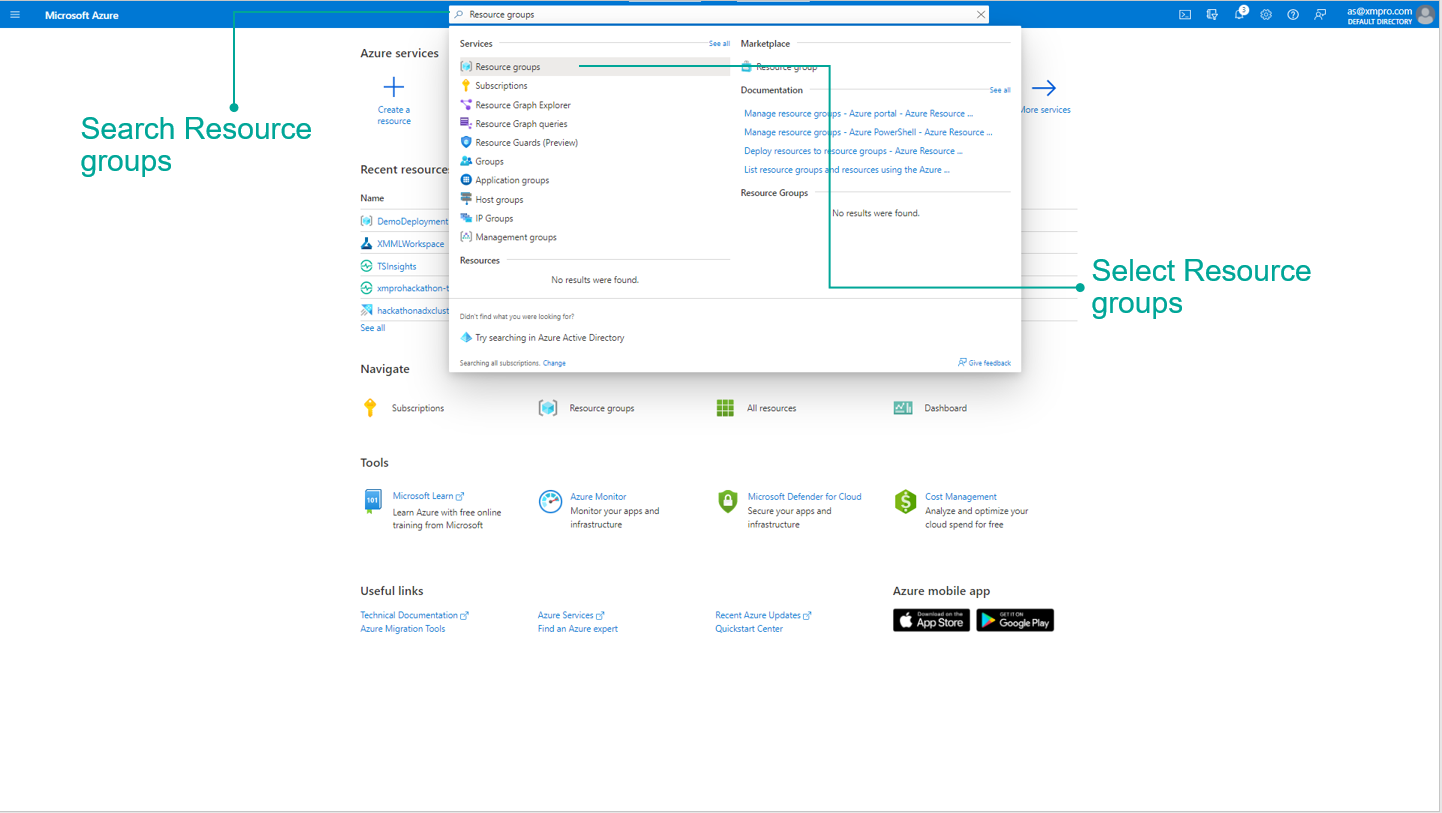

  1. Type “Resource groups” in the search bar and select “Resource groups”.

2. Search for the Resource Group created during installation and select it.

3. Select Subscription Manager, Data Stream Designer, and App Designer and restart the applications.

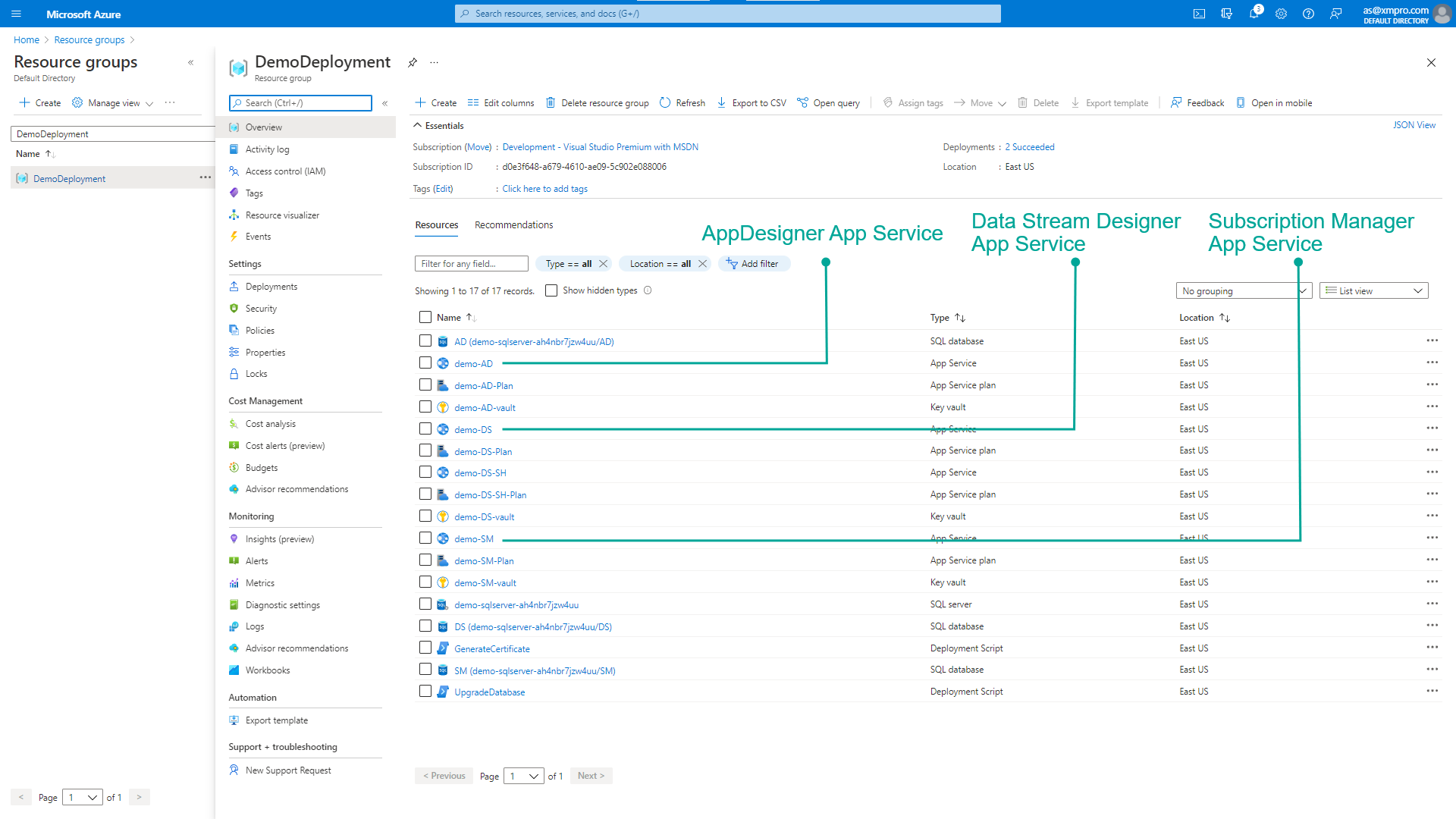

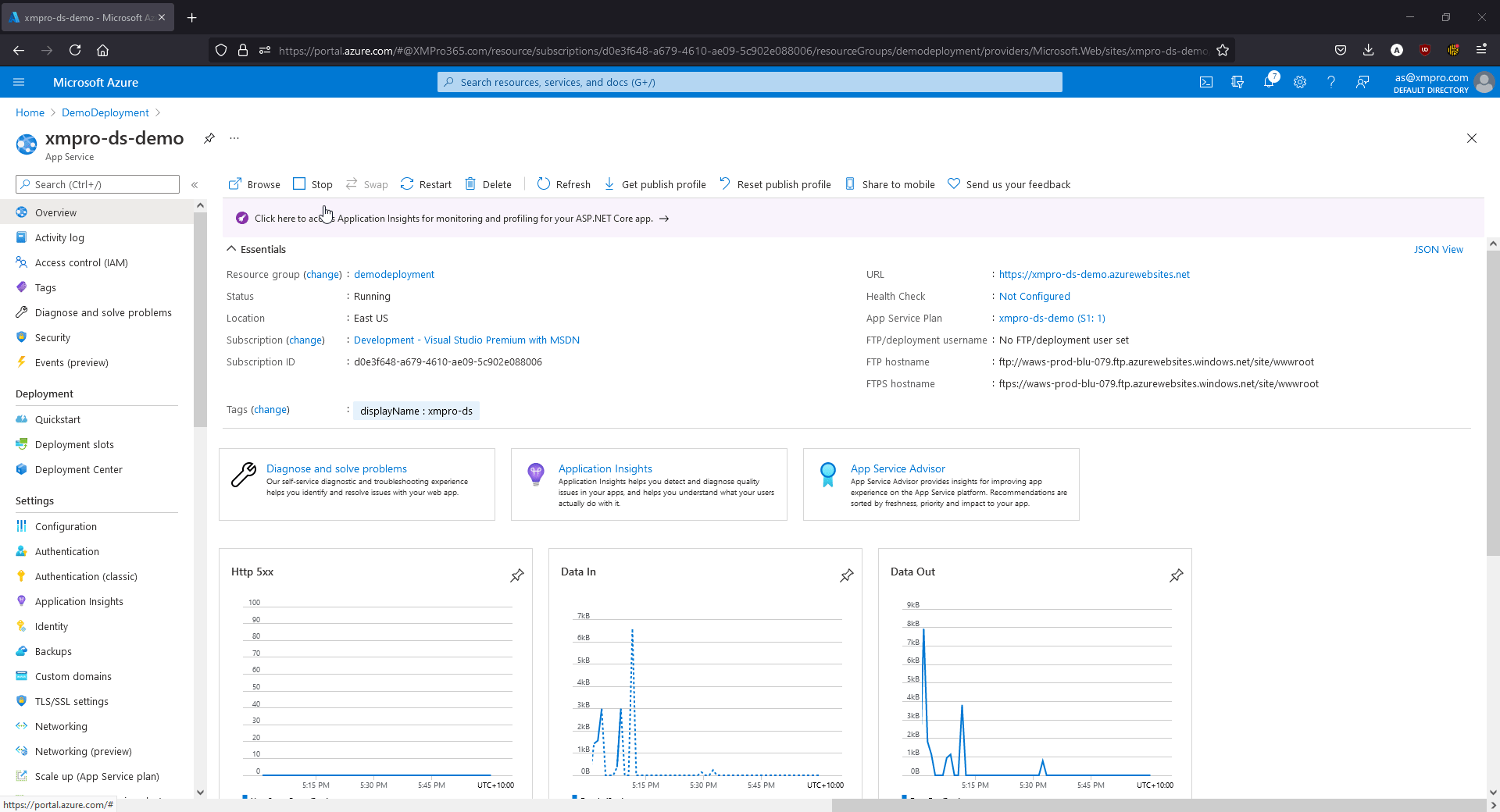

4. The below GIF shows how to restart your app service.

Logins

User Type Password
admin@xmpro.onxmpro.com Super Admin as entered during setup
firstname.lastname@companyname.onxmpro.com Admin as entered during setup

Request a License

A new company is created as part of the installation process but needs a valid license to work.

Note

Login using the Super Admin account **admin@xmpro.onxmpro.com**.

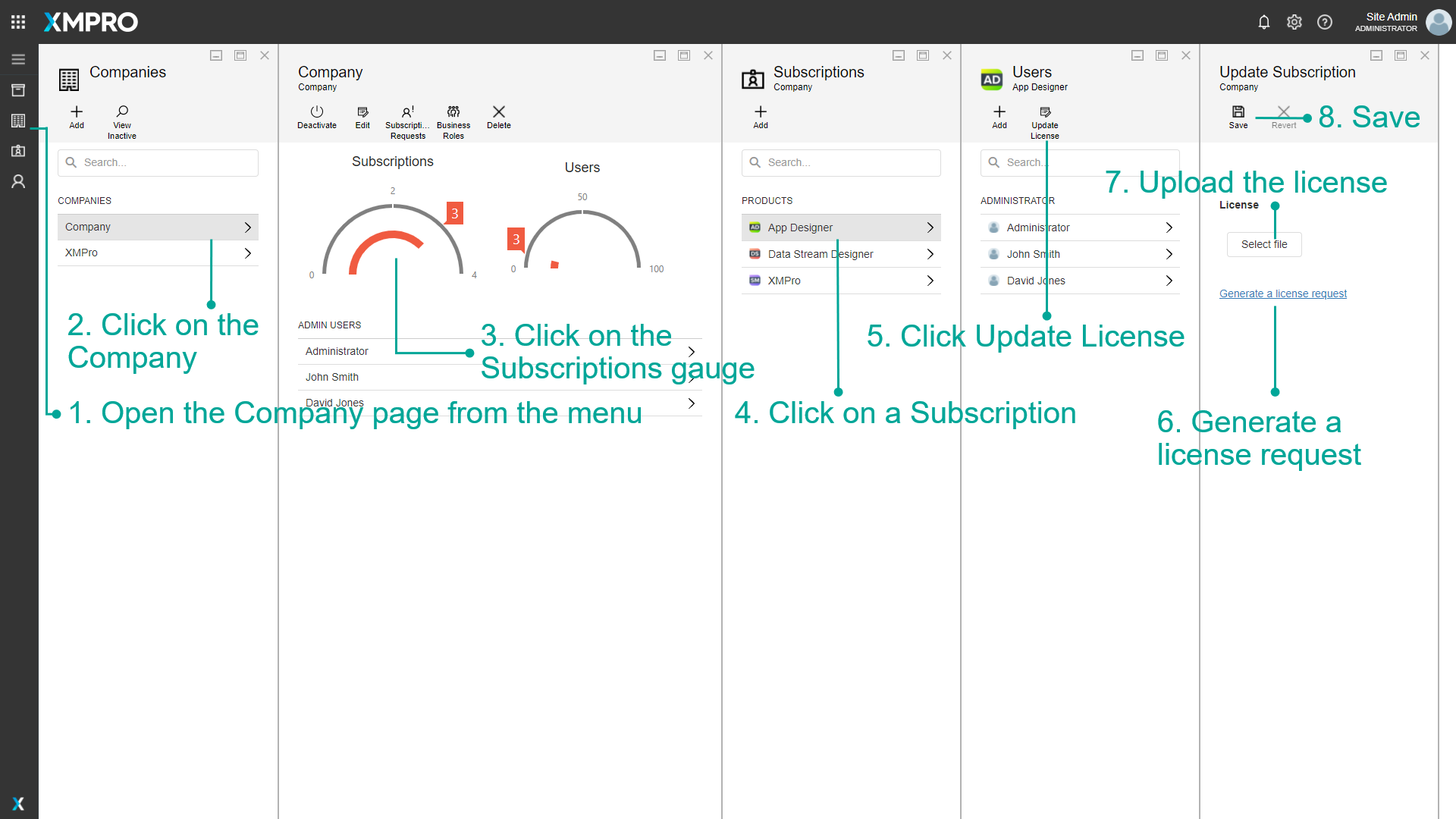

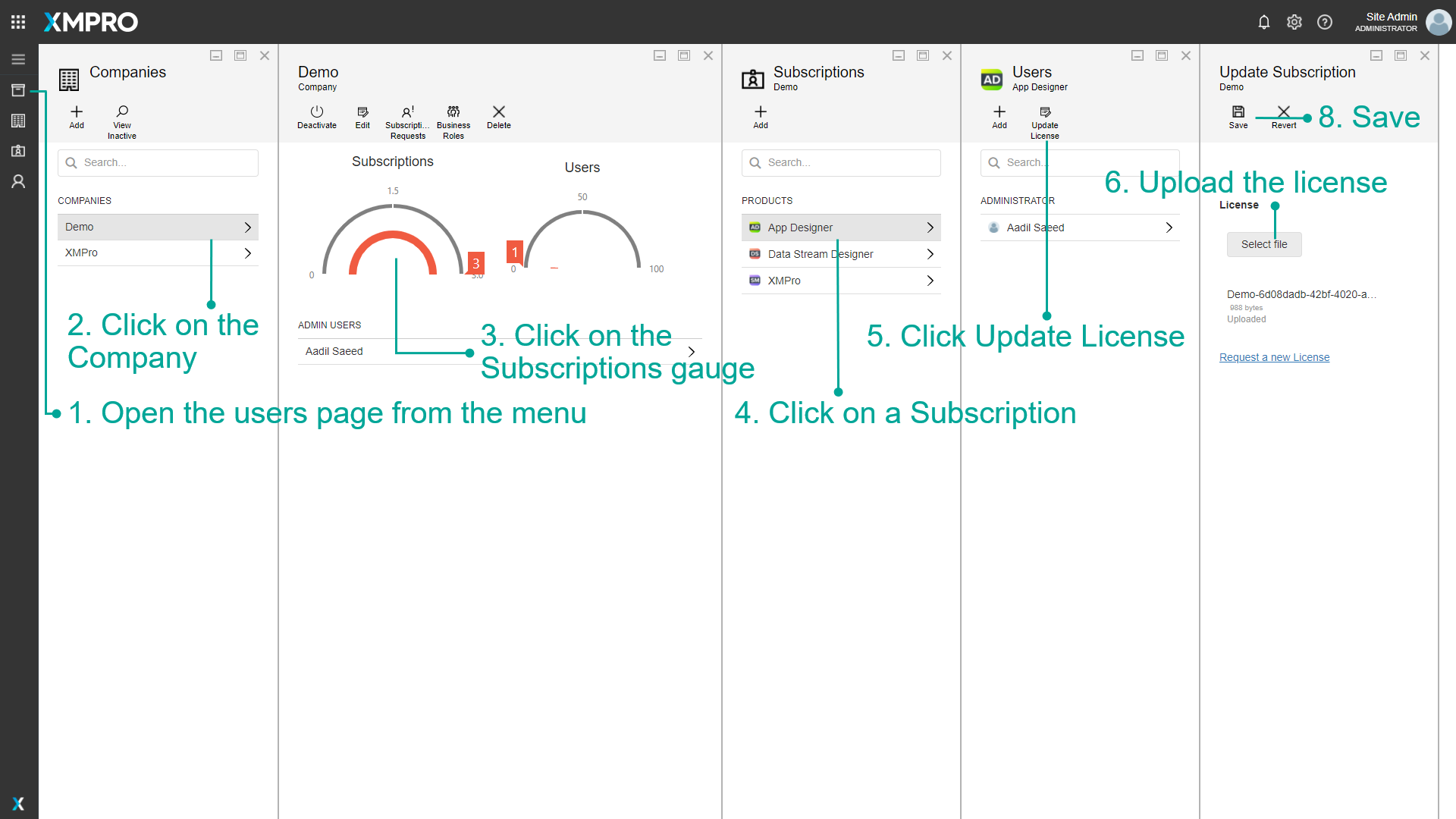

1. Click Company in the left menu to open the Companies page.
2. Click on the Company.
3. Click on the Subscriptions gauge to open the Subscriptions page.
4. Click on a Subscription.
5. Click the Update License button in the command bar.
6. Click Generate a license request, enter the number of days, and submit.
7. When you have received the license from XMPro support, upload it.
8. Click Save.

This sends a request to XMPro for an App Designer license for this Company.

Warning

The Generate a license request link will only work if SMTP was set up during installation.

9. Change the Product to Data Stream Designer from the list and request another license

Note

Licenses are given on an individual basis by the XMPro support team.

When you have received a license for each product through an email sent to the email address given during installation, follow the steps below to upload the license for both App Designer and Data Stream Designer.

Next Step: Complete Installation

The installation of the XMPro Platform is now complete but before you can use the platform, some steps are needed to set up the environment. Further instructions about the configuration can be found below:

Install Connectors

Upgrade

Warning

Before beginning the upgrade, back up databases using this guide.

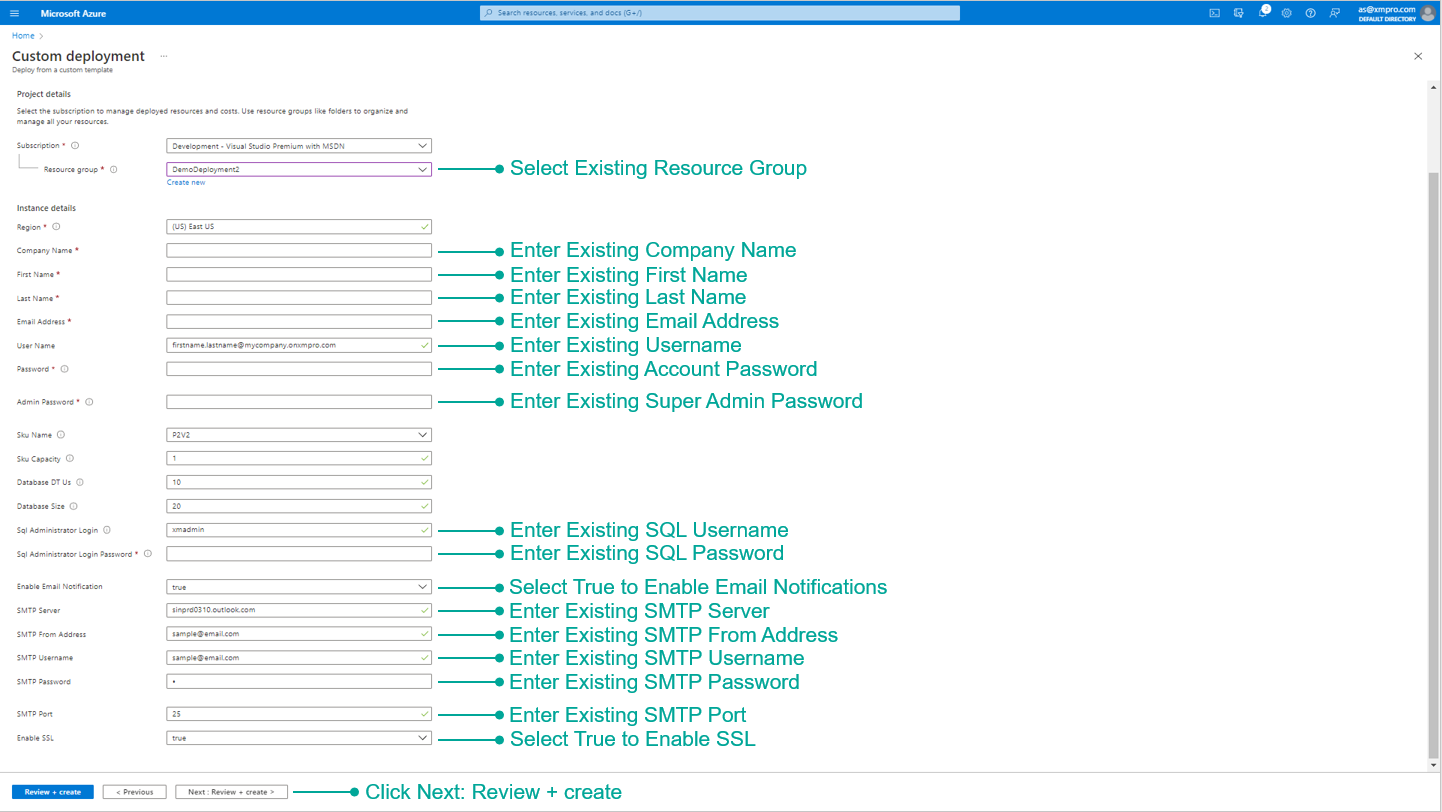

Follow the same steps as a new Install to upgrade your XMPro platform. Make sure to:

  • Download and use the latest "mainTemplate_[Version].json".
  • Before deploying, stop the SM App Service to avoid file locking issues during MSDeploy.
  • Use the same Resource Group and credentials used during the original Install when completing the Custom deployment form.

Azure ARM Template Upgrade

Known Issues

Notebook Upgrades with ARM Deployments

When upgrading XMPro instances that use AI Notebooks installed via ARM deployments, you may encounter known issues with the automated upgrade process. These issues primarily affect the Notebook components during ARM-based upgrades.

Impact and Scope

  • This issue affects users who deploy via ARM and already have AI Notebooks installed
  • The issue primarily appears during upgrades to version 4.4.18 and later
  • The problem involves compatibility between the ARM template and current Azure implementation

Workaround: Manual Notebook Deployment

While automated Notebook upgrades via ARM deployments may fail, you can successfully upgrade Notebooks using the following manual deployment process:

Prerequisites

  1. Bash terminal
  2. Azure CLI 2
  3. Helm 3.X

Manual Deployment Steps

  1. Login and validate connection to the correct subscription
az login
az account show
  1. Find the name of the AKS resource
az aks list -o table
  1. Merge the AKS cluster into kubeconfig
az aks get-credentials -n <aks resource name> -g <resource group>
  1. Check the kubectl is connected to the AKS instance
kubectl config current-context
  1. Find the helm deployment
helm list -n prod
  1. Check the helm deployment values and save to values.yml
helm get values xmpro-notebooks -n prod > values.yml | sed -i '1d' values.yml
  1. Remove the first line "USER-SUPPLIED VALUES:"
sed -i '1d' values.yml
  1. Observe the singleuser section in values.yml
singleuser:
  image:
    name: <registry>/base-jupyter-notebook
    tag: <release-version>
  1. Set the following values
  • <registry> = xmpro.azurecr.io
  • <release-version> = the desired release tag version e.g. 4.4.18
  1. Deploy the values upgrade using Helm
helm upgrade --cleanup-on-fail --install xmpro-notebooks jupyterhub/jupyterhub --namespace prod --create-namespace
  1. Wait for the deployment to complete
  2. Verify the deployment
helm list -n prod
  1. Verify the values are set correctly
helm get values xmpro-notebooks -n prod
  1. Verify the pods status
kubectl get pods -n prod
  1. If required, forcefully restart the notebook pods
kubectl delete pods --all -n prod

Issues

1. Notebook URLs are mismatched

The URLs for notebook should be in sync in all the places:

  • AI AppService > Environment Vars > xmpro:aidesigner:jupyterUrl
  • SM DB dbo.ProductUrls > Notebook Url
  • Helm Chart Release > xmpro-notebook > values
  • kubectl describe svc proxy-public -n prod > annotations > service.beta.kubernetes.io/azure-dns-label-name

Troubleshooting

# az login to the subscription
az login

Connect to the aks instance

az aks list -o table
az aks get-credentials -g <resource-group> -n <aks-instance-name-from-above>
kubectl config set-context <aks-instance-name-from-above>
kubectl config current-context

Get helm deployment details

helm ls -n prod
helm get values xmpro-notebooks -n prod
// check the notebook URLs

Get proxy public annotations

kubectl get svc -n prod
kubectl describe svc proxy-public -n prod
// check the service.beta.kubernetes.io/azure-dns-label-name annotation

Check the SQL database

az resource list -g <resource-group> -o table
az sql server show -g <resource-group> -n <sql-server-instance-name-from-above>
# check the SM DB dbo.ProductUrls > Notebook Url

Force restart all pods

kubectl get pods -n prod
kubectl delete pods --all -n prod

2. Access Denied to Storage Account

After a Notebook upgrade, launching a Jupyter Hub user instance may result in an error such as:

MountVolume.MountDevice failed for volume "pvc-64bd7714-7c0e-45ca-88cc-c1bdf816108e": rpc error: code = Internal desc = volume(MC_armupgrade_aks-armup-xmpro-001_centralus#nfs0f17de3935cc49c2ae46#pvc-64bd7714-7c0e-45ca-88cc-c1bdf816108e##prod#) mount "nfs0f17de3935cc49c2ae46.blob.core.windows.net:/nfs0f17de3935cc49c2ae46/pvc-64bd7714-7c0e-45ca-88cc-c1bdf816108e" on "/var/lib/kubelet/plugins/kubernetes.io/csi/blob.csi.azure.com/fd5793275cbf92e1d702e30d03bcf1634564e3690e3b635a763e814f5e09c29/globalmount" failed with mount failed: exit status 1 Mounting command: mount Mounting arguments: -t aznfs -o nconnect=4,sec=sys,vers=3,nolock nfs0f17de3935cc49c2ae46.blob.core.windows.net:/nfs0f17de3935cc49c2ae46/pvc-64bd7714-7c0e-45ca-88cc-c1bdf816108e /var/lib/kubelet/plugins/kubernetes.io/csi/blob.csi.azure.com/fd5793275cbf92e1d702e30d03bcf1634564e3690e3b635a763e814f5e09c29/globalmount Output: [0mmount.nfs: access denied by server while mounting 10.161.100.100:/nfs0f17de3935cc49c2ae46/pvc-64bd7714-7c0e-45ca-88cc-c1bdf816108e[0m [2;31mMount failed![0[0m Please refer to http://aka.ms/blobmounterror for possible causes and solutions for mount errors.

Follow the appropriate instructions on the link http://aka.ms/blobmounterror to fix up the reported error.

These particular steps deal with the Access denied by the server error.

Uninstall

This section provides information about uninstalling the XMPro platform from Azure.

  1. Open the resource group where XMPro is installed

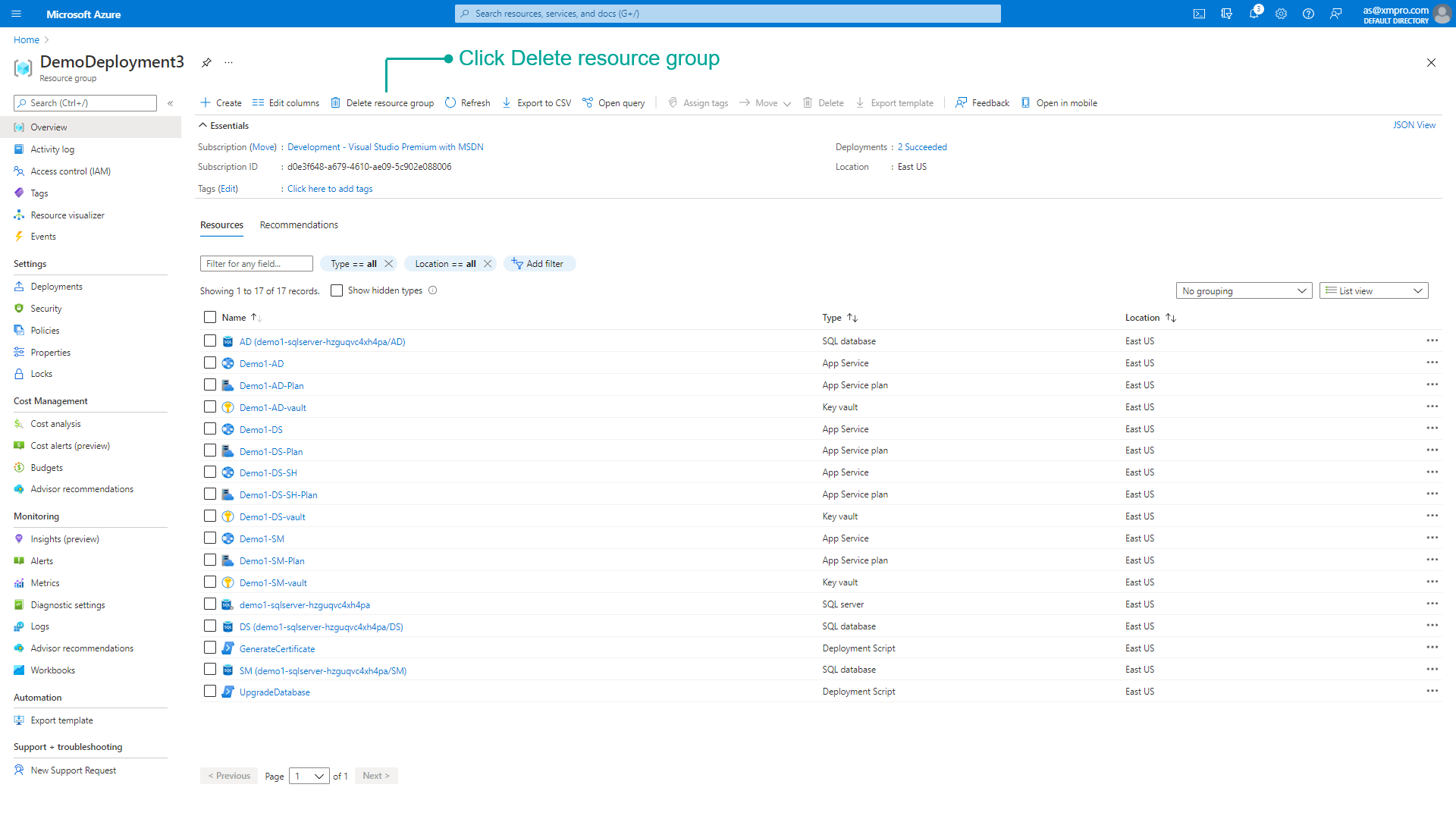

  2. Click Delete resource group

3. Enter the name of the resource group and click Delete
